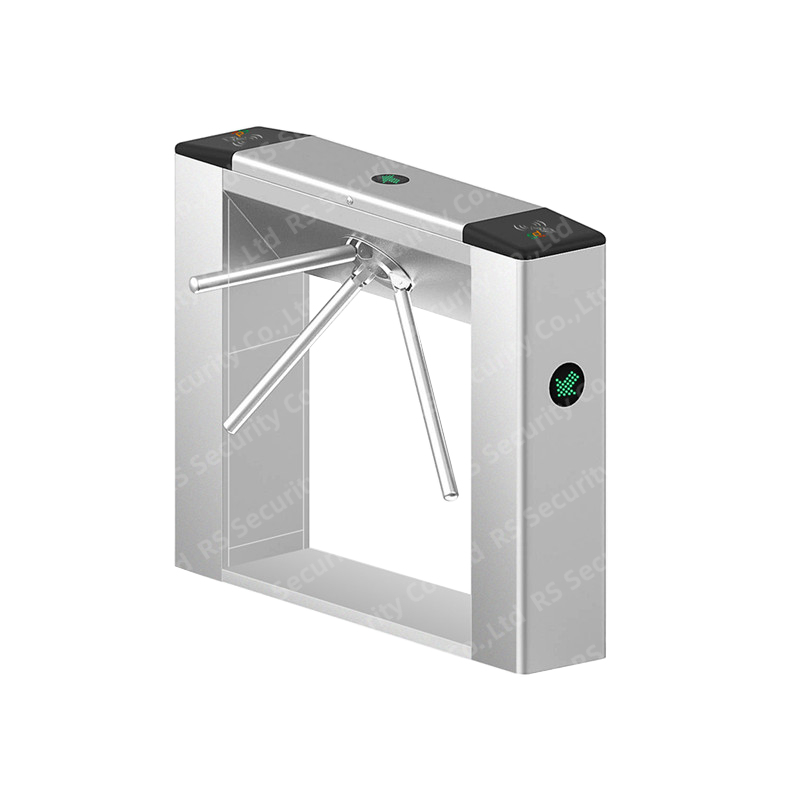

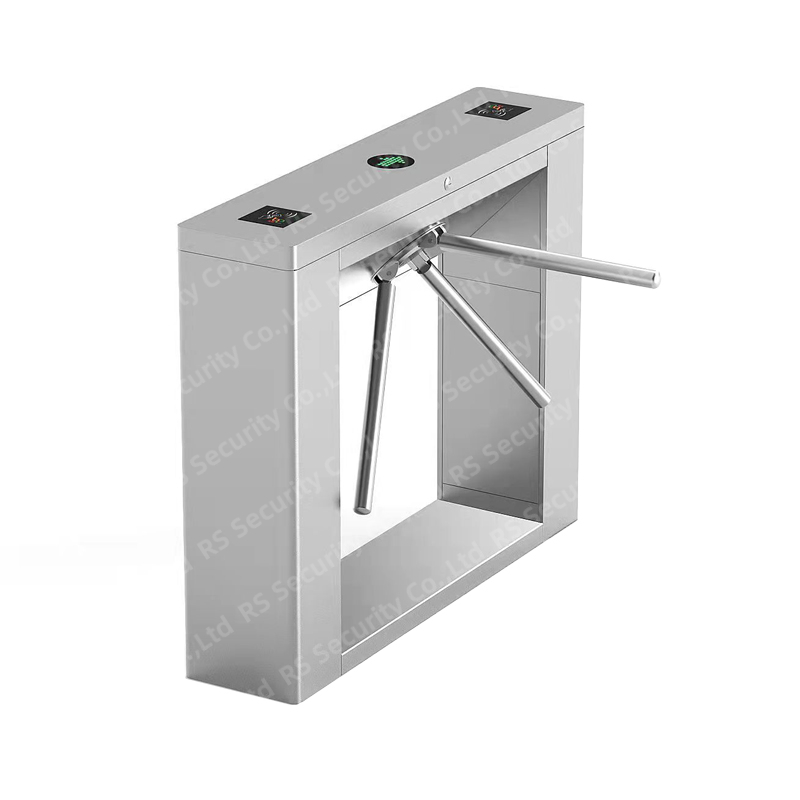

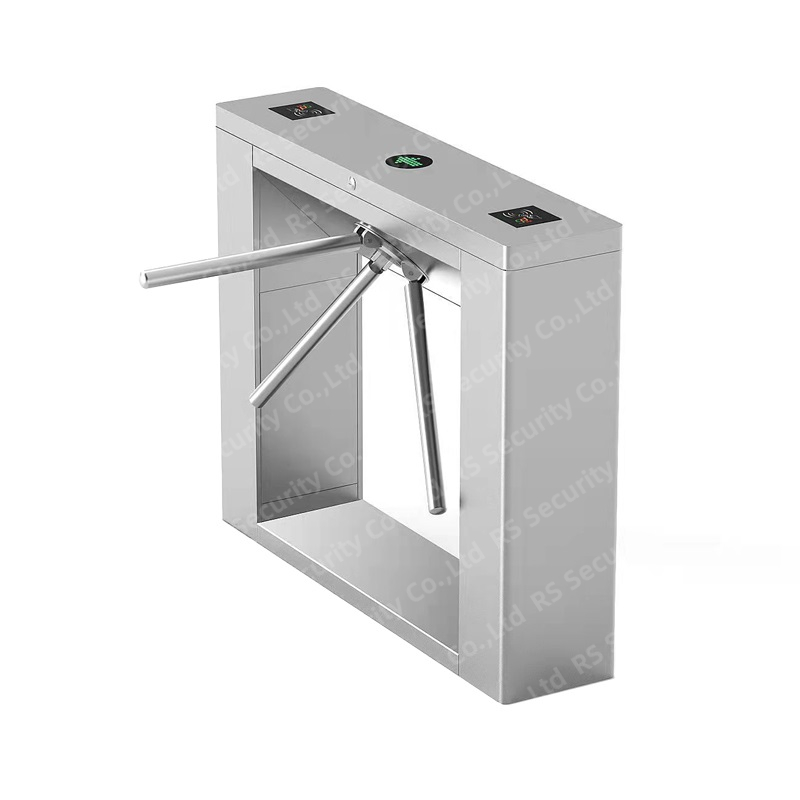

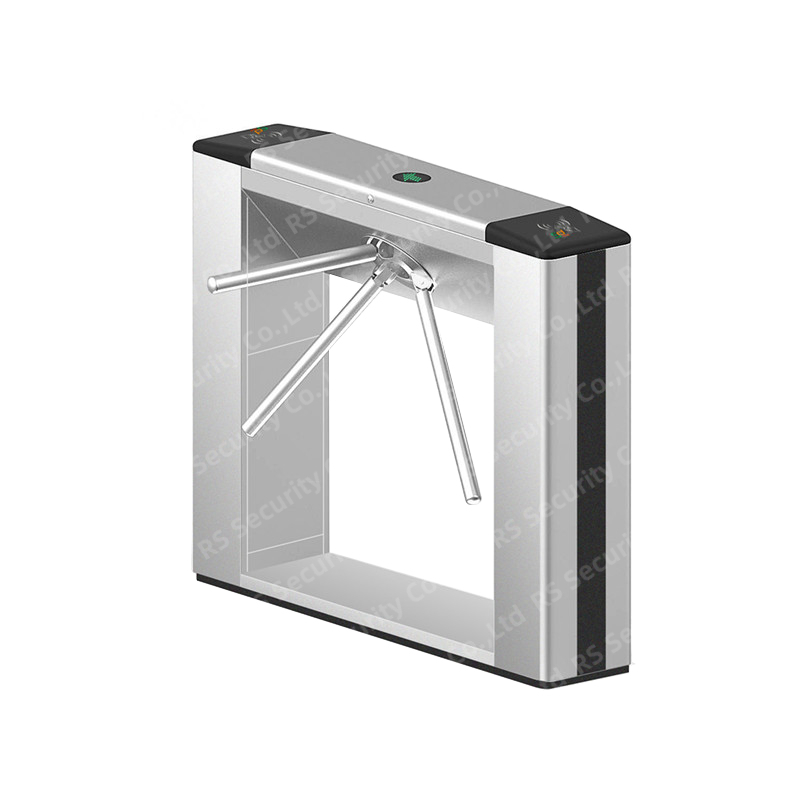

Tripod Turnstile RS 718 Also Called(Waist Heiht Turnstile,Three Arms Turnstile,Three Rollers Turnstile,Waist High Turnstile) is made of 316 or 304 Stainless Steel;Tripod Barreira RS 718 consist of electric circuit,mechanism,Three Barrier,led lamp,hydraulic damper electromagnetic and so on;Tripod Tourniquet RS 718 is the most economic pedestrian access control turnstile gate;Tripod Torniquetes RS 718 with standard fire inerface,arm can drop down for evacuation even power if not cut off when fire alarm triggered;Tripod Barrieres RS 718 is widely used in School,Cinema,Labrary,Factory,Ferry,Gym and Subway Stantion;Tripod Barrera RS 718 anti-passback,when arm rotate 60 degree,people cannot reverse back.Tripod Barriere RS 718 with hydraulic damper,low impact sound and high durability:the 3 arms can rotate one or two ways,controlled by an access control system or push button at a reception desk.Tripod Tourniquets RS 718 has standard relay signal, which can be integrated with any kind of third-party access control system.(e.g.:RFID,Biometric reader device,Fingerprint and Face Recognition).
Product Name
Tripod Turnstile
Model
RS 718
Arm Length
500mm
Material
304 Stainless Steel;2.0mm thickness;
Dimension
vertical:420*330*980mm;bridge:1200*280*980mm
Net Weight
50kg/pcs,70kg/pcs
Passing Direction
Single directional / Bi-directional
MCBF
5 million
Working Environment
Indoors or outdoors with shed
HS Code
8608009000
Power Supply
AC220V/110V, 50/60Hz
Operation Voltage
24V DC
Power Consumption
20W
Operation Temperature
-15 ° C – 60 ° C
Flow Rate
25-35 people per minute
LED Indicator
Yes
Emergency
Automatic arm drop when power off
Communication Interface
RS485 (Distance: <=1200m), TTL232
Access Control
barcode,ic/id card,face recognition,fingerprint etc;
*Tripod turnstiles are compact and cost-effective entrance/exit security solutions.
*The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable.
*It is ideal for both indoor and outdoor settings.
*It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID,Fingerprint and Biometric reader device).
*It has sufficient space, which can mount with any type of external device.( e.g.: Display, Counter, Reader, Push button,Card collector, Coin insert, Barcode/QR reader, Wheel).
* In case of emergency, tripod turnstile horizontal arms will drop down automatically to allow free passage when power off.
*Anti-tailing function: only one person passes at one time. It is suitable for areas with general pedestrian traffic. (e.g.: Park, School, Factory, Library, Cinema, Gym).
^Long-life performance, high operation dependability and fast response.
^The whole system runs smoothly, low noise, no mechanical impact.
^Single directional or Bi-directional is selectable.
^Automatic reset function: turnstile arm will lock automatically
within 5s (can be setting) if passenger delay to entry.
^When power is off, arms will drop down automatically, which is
complying with fire safety requirements.
^LED indicator (red × means no entry; green →means entry). Easy to install and maintain.
^3-year warranty support.
RS Security Co.,Ltd is a company with more than 15 years of experience in turnstile manufacturing. Our high-quality products and many certificates have made us one of the best in the business. Contact us to fulfill all of your access control needs.
