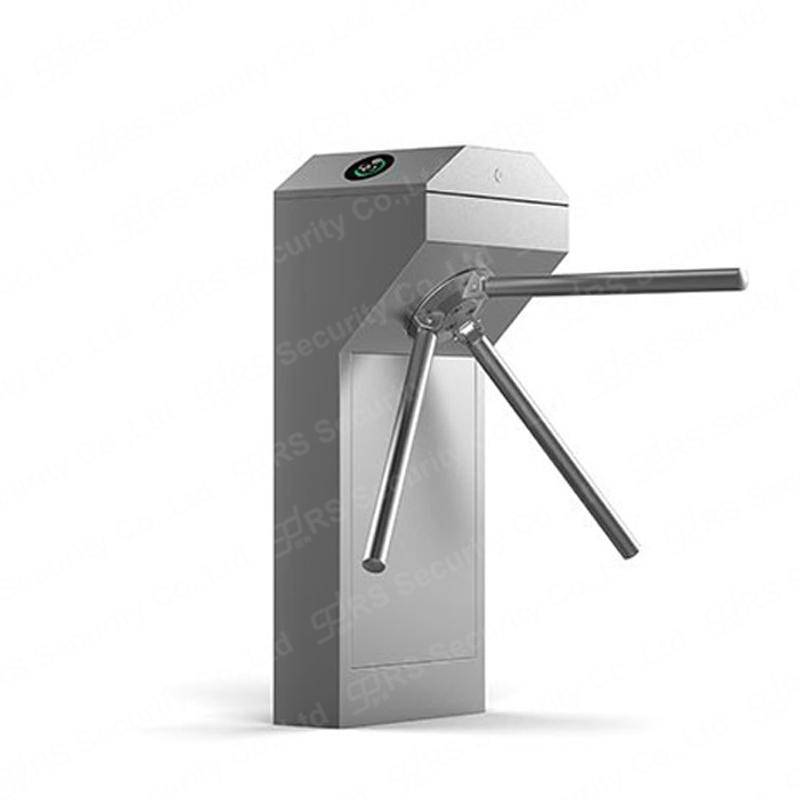

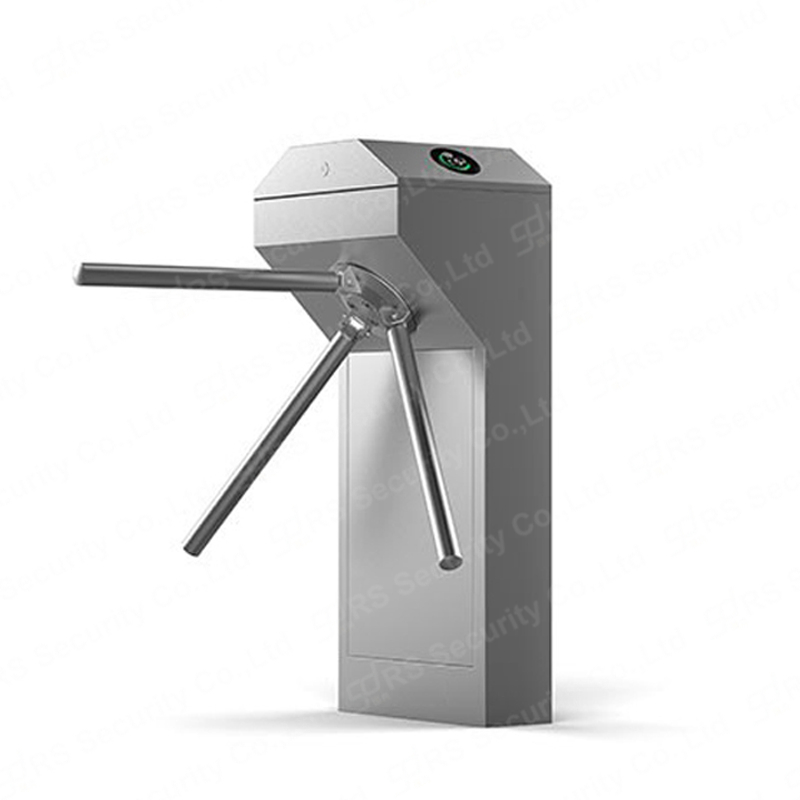

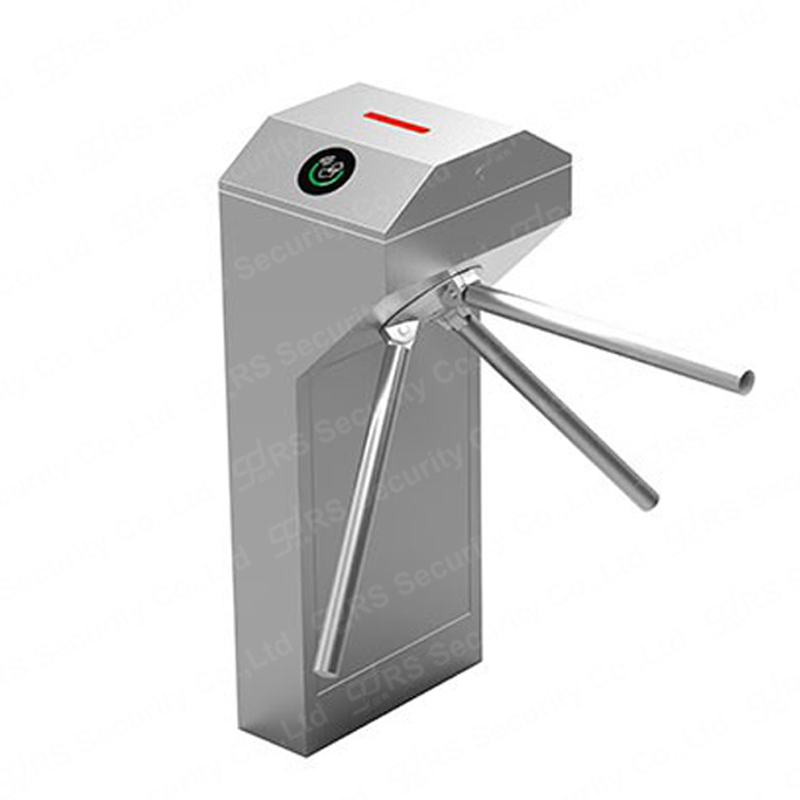

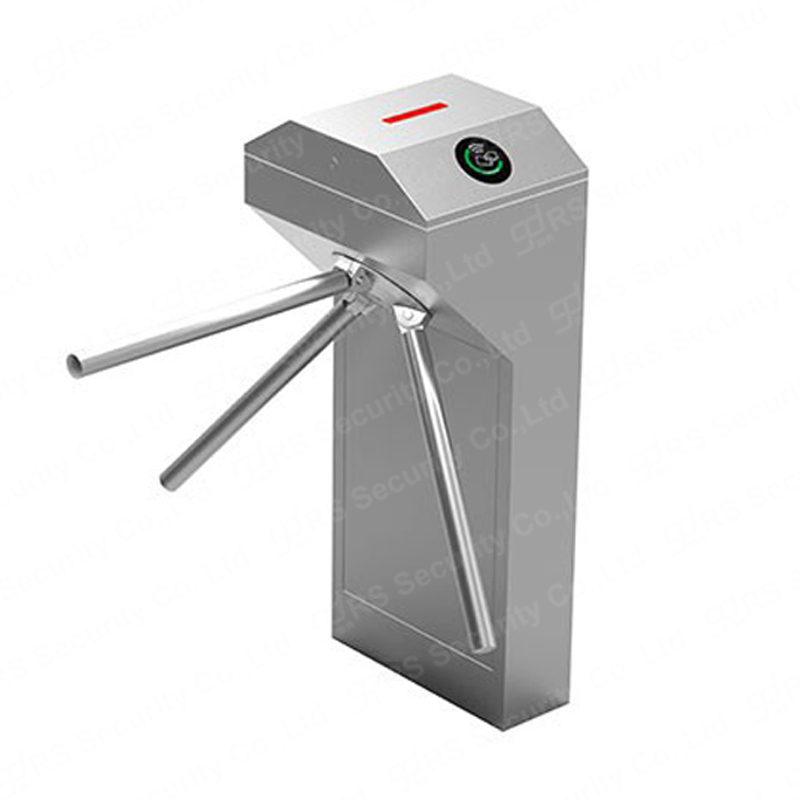

Tripod Turnstile RS 218-3

Tripod Turnstile RS 218-3 Also Called(Waist Heiht Turnstile,Three Rollers Turnstile,Waist High Turnstile,Three Arms Turnstile) is made of 304 or 316 Stainless Steel;Tripod Barrieres RS 218-3 consist of hydraulic damper,led lamp,Three Barrier,mechanism,electric circuit electromagnetic and so on;Tripod Torniquetes RS 218-3 is the most economic pedestrian access control turnstile gate;Tripod Tourniquet RS 218-3 with standard fire inerface,arm can drop down for evacuation even power if not cut off when fire alarm triggered;Tripod Tourniquets RS 218-3 is widely used in Factory,Labrary,Cinema,Subway Stantion,School,Gym and Ferry;Tripod Barreira RS 218-3 anti-passback,when arm rotate 60 degree,people cannot reverse back.Tripod Barriere RS 218-3 with hydraulic damper,low impact sound and high durability:the 3 arms can rotate one or two ways,controlled by an access control system or push button at a reception desk.Tripod Barrera RS 218-3 has standard relay signal, which can be integrated with any kind of third-party access control system.(e.g.:RFID,Fingerprint,Biometric reader device and Face Recognition).

Product Name

Tripod Turnstile

Model

RS 218-3

Arm Length

500mm

Material

304 Stainless Steel;2.0mm thickness;

Dimension

vertical:420*330*980mm;bridge:1200*280*980mm

Net Weight

   50kg/pcs,70kg/pcs

Passing Direction

Single directional / Bi-directional

MCBF

5 million

Working Environment

Indoors or outdoors with shed

HS Code

8608009000

Power Supply

AC220V/110V, 50/60Hz

Operation Voltage

24V DC

Power Consumption

20W

Operation Temperature

-15 ° C – 60 ° C

Flow Rate

25-35 people per minute

LED Indicator

Yes

Emergency

Automatic arm drop when power off

Communication Interface

RS485 (Distance: <=1200m), TTL232

Access Control

barcode,ic/id card,face recognition,fingerprint etc;

*Tripod turnstiles are compact and cost-effective entrance/exit security solutions.

*The body is made of brushed stainless steel which is robust, rigid, anti-rust, waterproof and durable.

*It is ideal for both indoor and outdoor settings.

*It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID,Fingerprint and Biometric reader device).

*It has sufficient space, which can mount with any type of external device.( e.g.: Display, Counter, Reader, Push button,Card collector, Coin insert, Barcode/QR reader, Wheel).

* In case of emergency, tripod turnstile horizontal arms will drop down automatically to allow free passage when power off.

*Anti-tailing function: only one person passes at one time. It is suitable for areas with general pedestrian traffic. (e.g.: Park, School, Factory, Library, Cinema, Gym).

^Long-life performance, high operation dependability and fast response.

^The whole system runs smoothly, low noise, no mechanical impact.

^Single directional or Bi-directional is selectable.

^Automatic reset function: turnstile arm will lock automatically

within 5s (can be setting) if passenger delay to entry.

^When power is off, arms will drop down automatically, which is

complying with fire safety requirements.

^LED indicator (red × means no entry; green →means entry). Easy to install and maintain.

^3-year warranty support.
