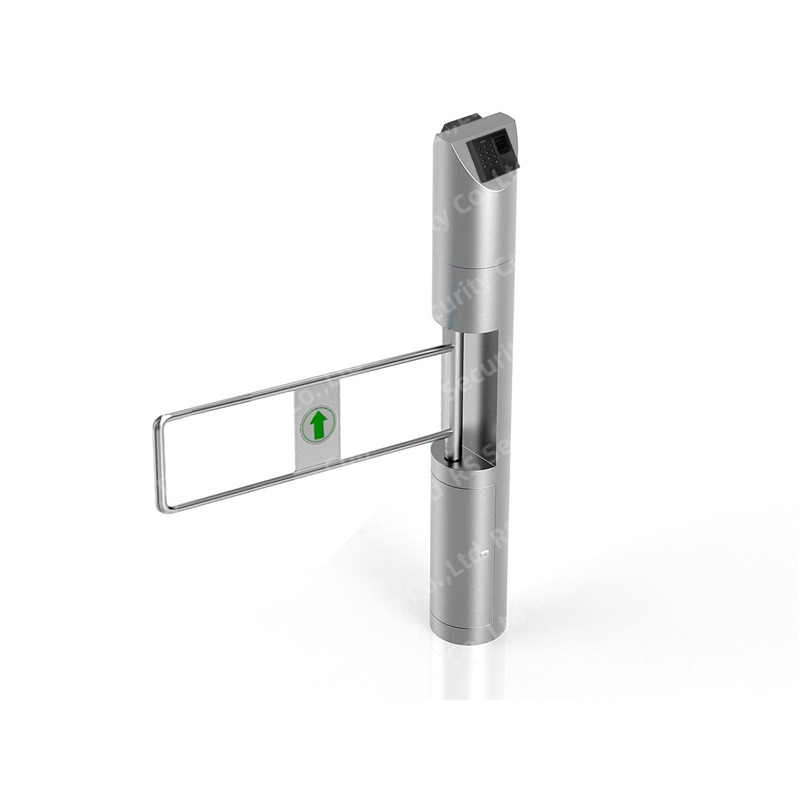

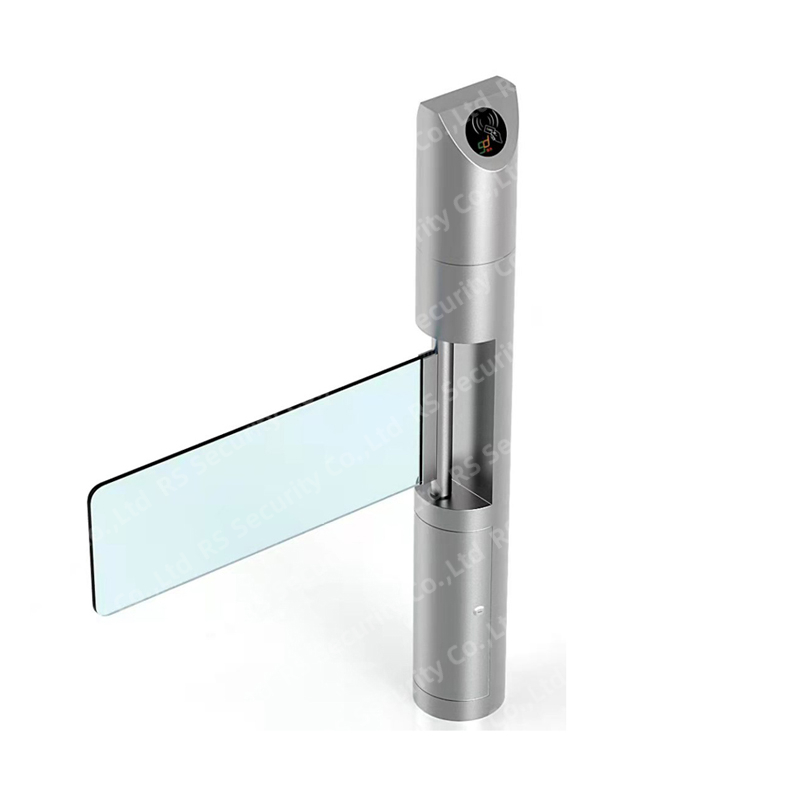

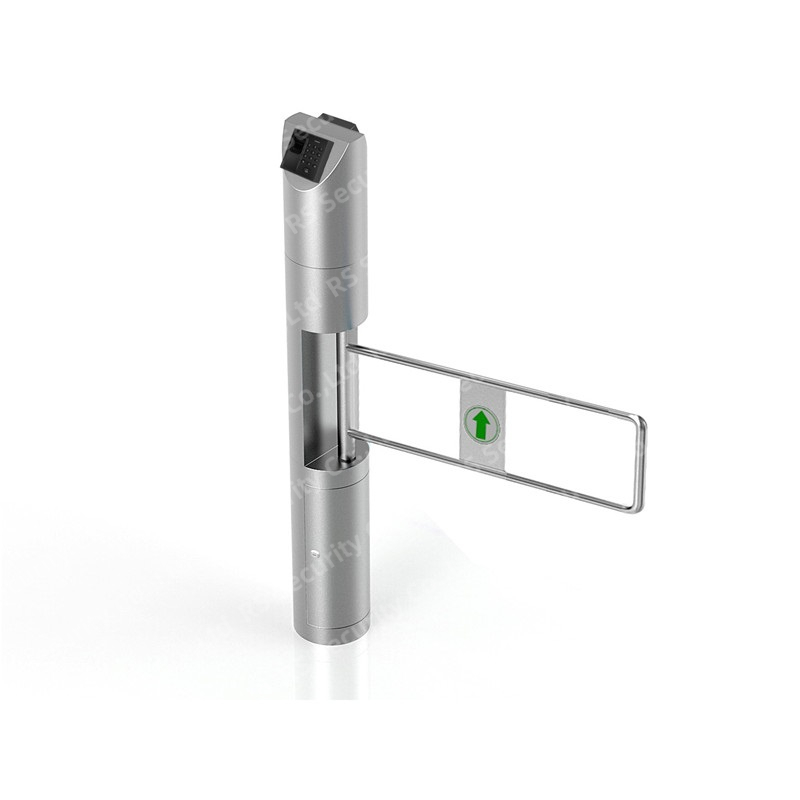

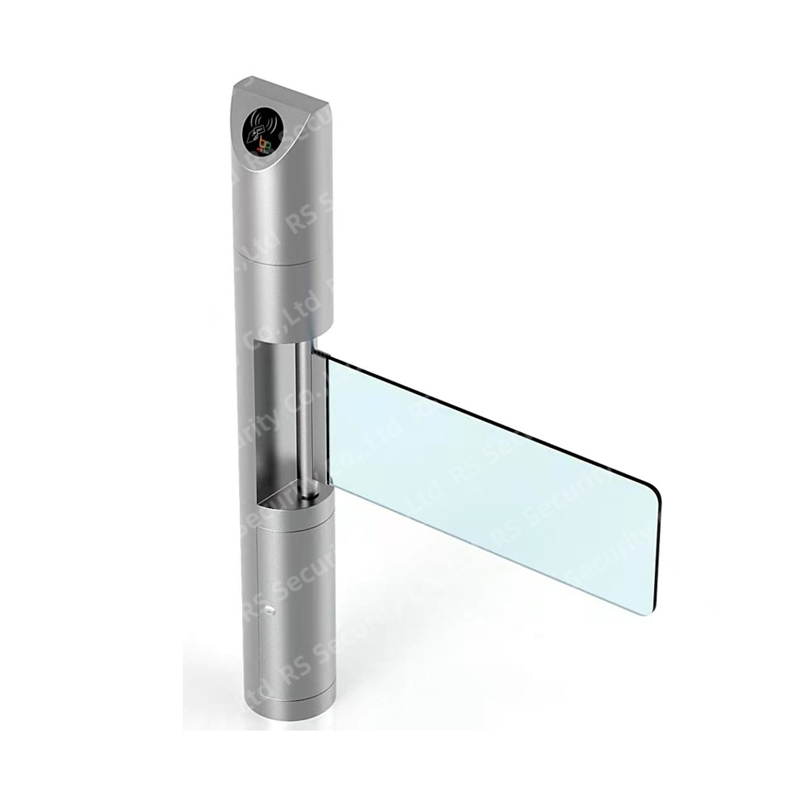

Swing turnstile RS 316-A has standard electrical interface which can be connected with ID cards, IC cards, magnetic cards, barcode cards etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.
Product Name
Swing Turnstile,Swing Barrier
Model
RS 316-A
Material
SUS304 brushed stainless steel
Cylinder Size
168*1050mm
Vertical Size
420*380*980mm
Bridge Size
1400*280*980mm
Passage Width
600-900mm
MCBF
5 million
Working Environment
Indoors or outdoors with shed
HS Code
8608009000
Power Supply
AC220V/110V, 50/60Hz
Operation Voltage
24V DC
Power Consumption
20W
Operation Temperature
-15 ° C – 60 ° C
Flow Rate
40-45 people per minute
LED Indicator
Yes
Emergency
Automatic arm drop when power off
Communication Interface
RS485 (Distance: <=1200m), TTL232
Access Control
barcode,ic/id card,face recognition,fingerprint etc;
> SUS304 stainless steel with the thickness of 1.5mm
> Speed of throughput: 30 persons/minute
> 6 pairs of infrared sensors, 618mm/818mm/1018mm aisle width
> IP54 ingress protection rating
> Integrates easily to access control/visitor management system
> Anti-collision, anti-Reverse, anti-intrusion, anti-trailing
> In the event of power failure, the flaps will unlocked
> Infrared sensor to prevent pinch pedestrians
> Supports combination access authentication
> Pedestrian flow directions can be single or bi-directional
*Swing Turnstile Gate is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
The body is made of brushed stainless steel and black rubber.
*Swing Turnstile is ideal for both indoor and outdoor settings.
*Swing Barrier has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).
*Swing Gate has sufficient space, which can mount with any type of external device( e.g.: Display, Counter, Reader, Push button, Card collector, Coin insert,Barcode/QRreader).
*In case of emergency, the optical turnstile arms will open automatically to allow free passage.
*Swing Door support standard and handicapped type with wide passageway, wheelchair, pedestrian with large luggage can pass.
*Swing Barrier Gate is suitable for areas with general pedestrian traffic.(e.g.: Hotel, Building, Dormitory, Station, Supermarket)
RS Security Co.,Ltd is a company with more than 15 years of experience in turnstile manufacturing. Our high-quality products and many certificates have made us one of the best in the business. Contact us to fulfill all of your access control needs.
