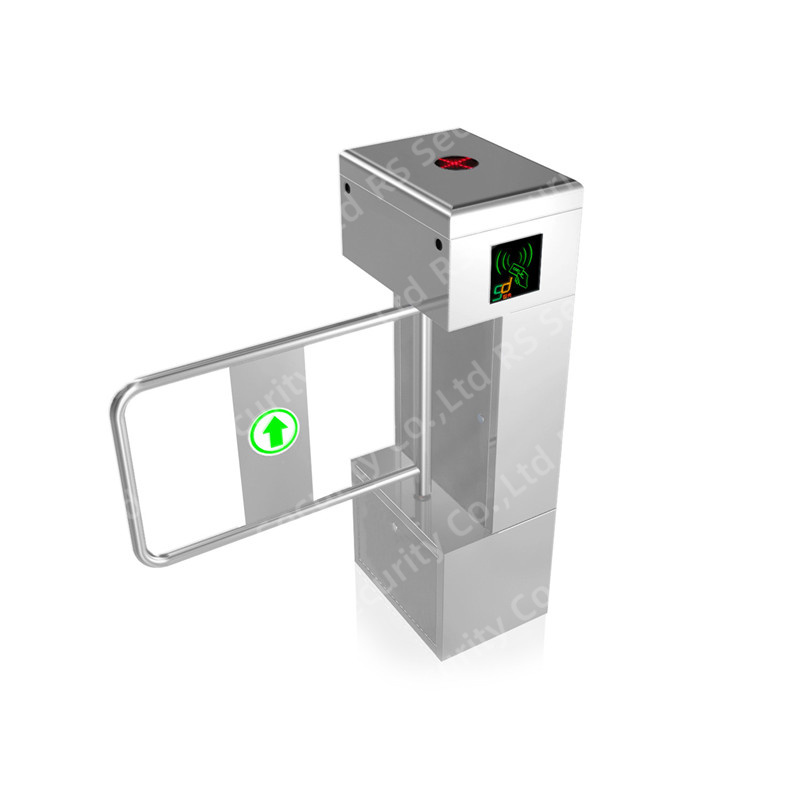

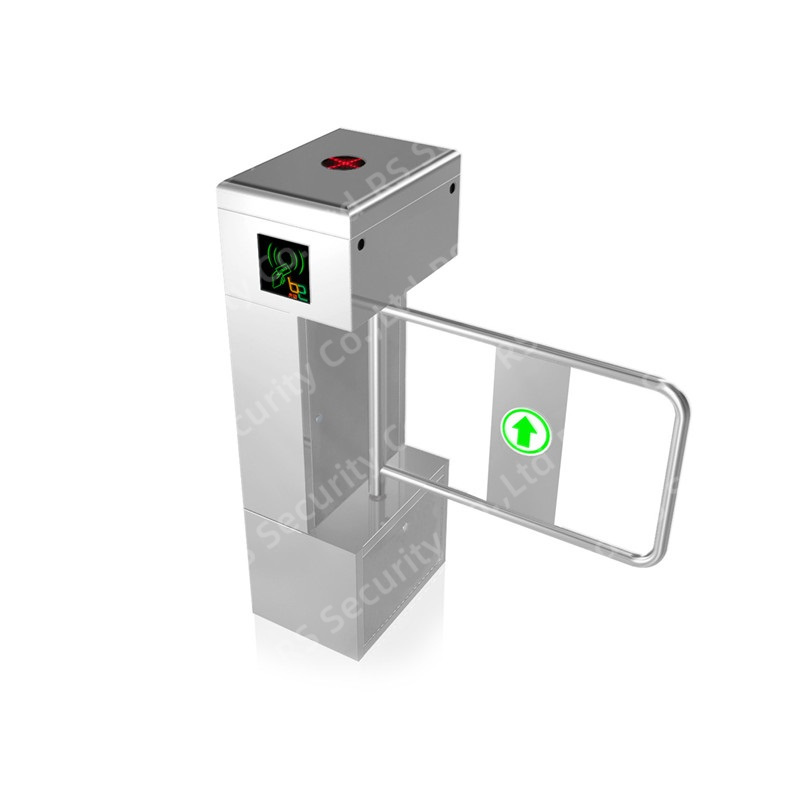

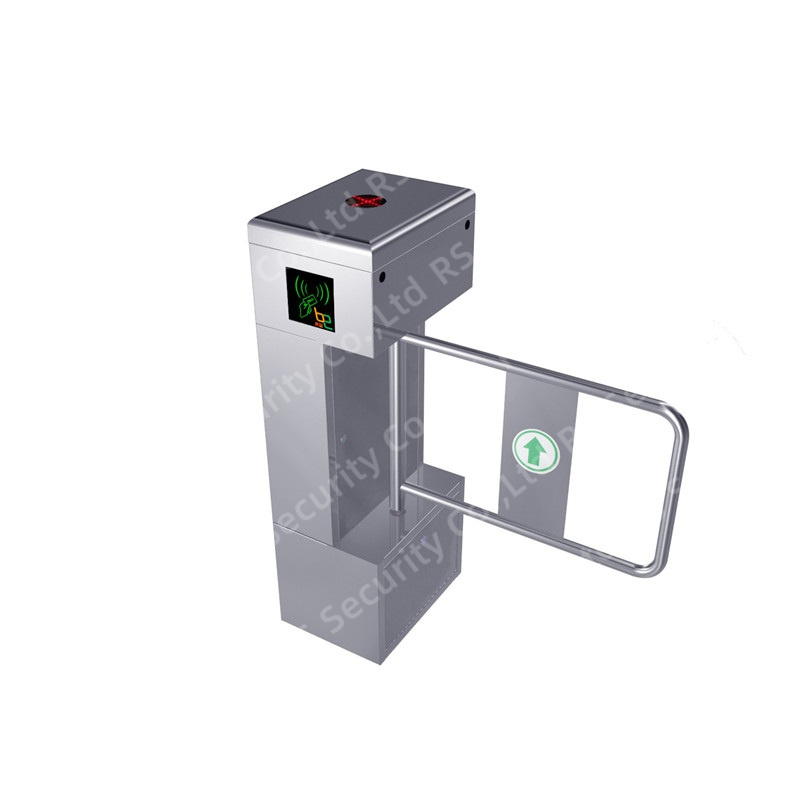

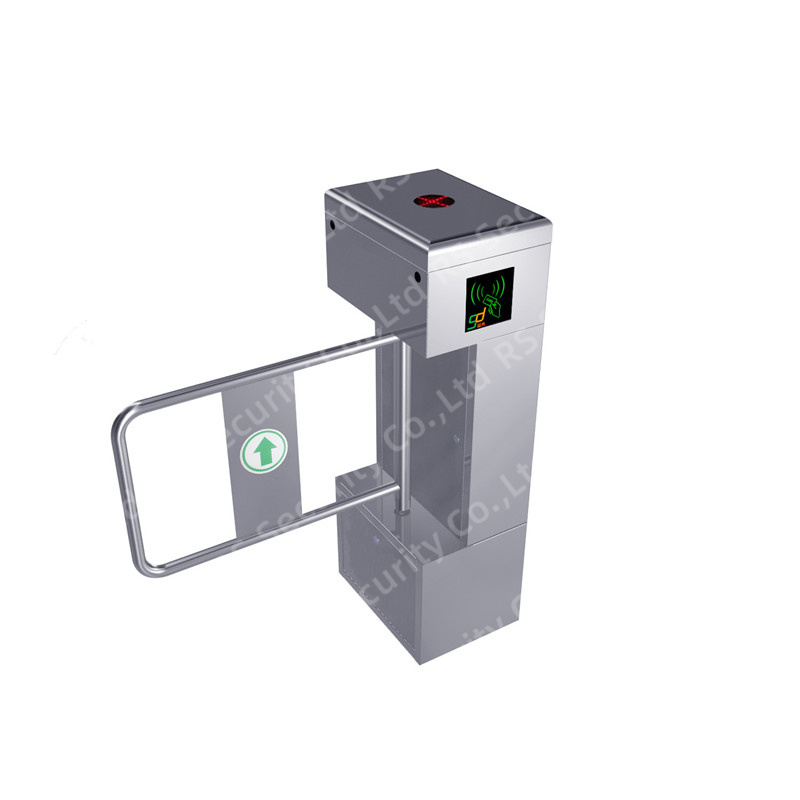

Vertical Swing Turnstile RS 116

Size 1400*280*980mm
Material 304 Stainless Steel
Brand RS Security
Origin Guangdong China
Certificate ISO, CE
Chat Now
Contact Us

Swing Turnstile RS 116 Also Called(Wing Turnstiles,Wing Barriers,Swing Barriers,Swing Gates) has standard electrical interface which can be connected with IC Cards,ID Cards,QR Code,Facial Recognition etc.Swing Barrier Gate RS 116 The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.Swing Turnstile Door RS 116 full body is made of 1.5 – 2.0mm thickness 304 or 316 stainless stell;Wing Turnstiles RS 116 dc motor,electric circuit,mechanism,sensors,swing barriers,buzzer,buzzer,led lamp and so on;Wing Barriers RS 116 provides flexible passageway access control,the control width from 300-1600mm.Swing Barrera RS 116 has different program for pedestrian or bicycle,work with high sensitivity sensors to ensure safety of people.Swing Tourniquet RS 116 with stadard fire inerface,arm can drop down for evacuation even power is not cut off when fire alarm triggered.Swing Torniquete RS 116 can external third-party devices such as: qr code,barcode,coin insert,push button,reader,wheel and so on;


Product Name

Swing Turnstile,Swing Barrier


RS 116


SUS304 brushed stainless steel

Cylinder Size


Vertical Size


Bridge Size


Passage Width



5 million

Working Environment

Indoors or outdoors with shed

HS Code


Power Supply

AC220V/110V, 50/60Hz

Operation Voltage

24V DC

Power Consumption


Operation Temperature

-15 ° C – 60 ° C

Flow Rate

40-45 people per minute

LED Indicator



Automatic arm drop when power off

Communication Interface

RS485 (Distance: <=1200m), TTL232

Access Control

barcode,ic/id card,face recognition,fingerprint etc;



>    SUS304 stainless steel with the thickness of 1.5mm

>   Speed of throughput: 30 persons/minute

>   6 pairs of infrared sensors, 618mm/818mm/1018mm aisle width

>   IP54   ingress protection rating

>   Integrates easily to access control/visitor management system

>   Anti-collision, anti-Reverse, anti-intrusion, anti-trailing

>   In the event of power failure, the flaps will unlocked

>   Infrared sensor to prevent pinch pedestrians

>   Supports combination access authentication

>   Pedestrian flow directions can be single or bi-directional


*Swing Turnstile Gate is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.

The body is made of brushed stainless steel and black rubber.

*Swing Turnstile is ideal for both indoor and outdoor settings.

*Swing Barrier has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).

*Swing Gate has sufficient space, which can mount with any type of external device( e.g.: Display, Counter, Reader, Push button, Card collector, Coin insert,Barcode/QRreader).

*In case of emergency, the optical turnstile arms will open automatically to allow free passage.

*Swing Door support standard and handicapped type with wide passageway, wheelchair, pedestrian with large luggage can pass.

*Swing Barrier Gate is suitable for areas with general pedestrian traffic.(e.g.: Hotel, Building, Dormitory, Station, Supermarket)
