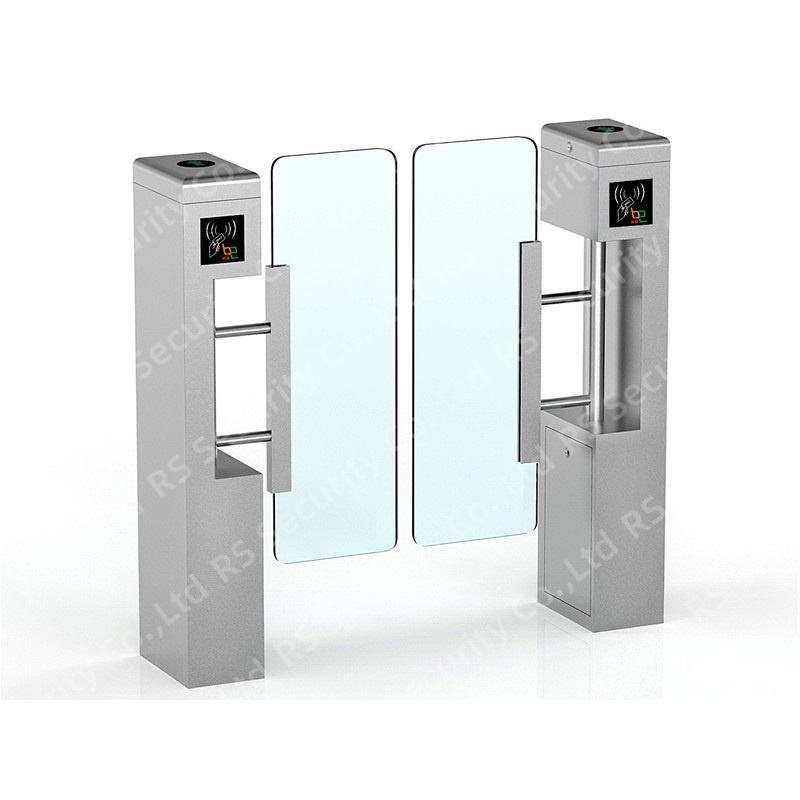

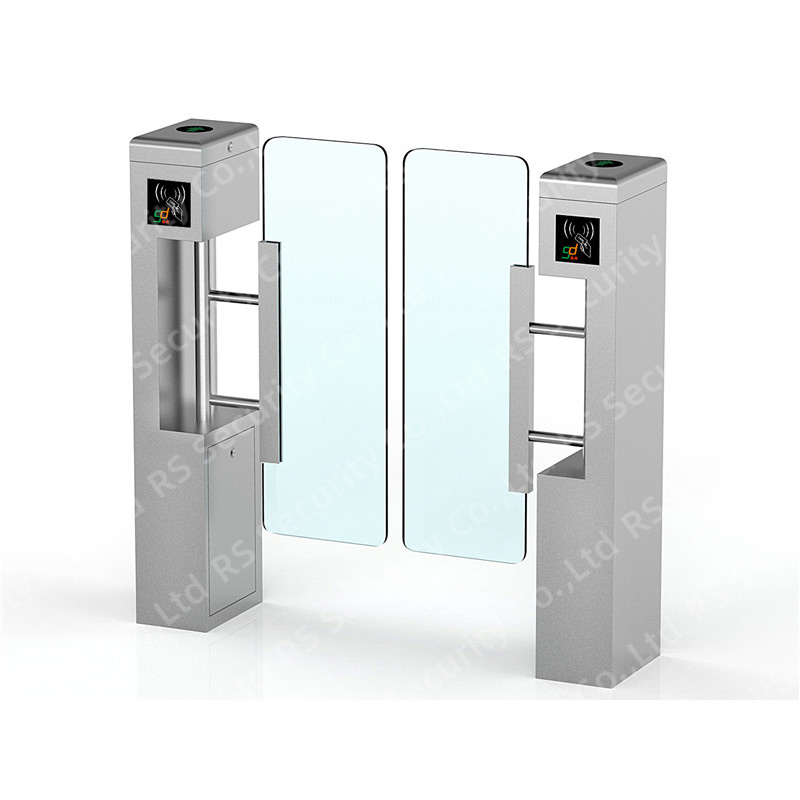

Swing Turnstiles RS 116-1 Also Called(Swing Gates,Wing Turnstiles,Wing Barriers,Swing Barriers) has standard electrical interface which can be connected with QR Code,IC Cards,ID Cards,QR Code etc.Wing Barriers RS 116-1 The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.Wing Turnstiles RS 116-1 chassis shell is made of 1.5 – 2.0mm thickness 304 stainless stell;Swing Turnstile Door RS 116-1 electric circuit,mechanism,dc motor,swing barriers,sensors,led lamp,buzzer,battery etc;Swing Barrier Gate RS 116-1 provides flexible passageway access control,the control width from 300-1600mm.Swing Tourniquet RS 116-1 has different program for pedestrian or bicycle,work with high sensitivity sensors to ensure safety of people.Swing Torniquete RS 116-1 with stadard fire inerface,arm can drop down for evacuation even power is not cut off when fire alarm triggered.Swing Barrera RS 116-1 can external third-party devices such as: wheel,qr code,barcode,coin insert,push button,reader and so on;
Swing Turnstile,Swing Barrier
SUS304 brushed stainless steel
Indoors or outdoors with shed
-15 ° C – 60 ° C
40-45 people per minute
Automatic arm drop when power off
RS485 (Distance: <=1200m), TTL232
barcode,ic/id card,face recognition,fingerprint etc;
> SUS304 stainless steel with the thickness of 1.5mm
> Speed of throughput: 30 persons/minute
> 6 pairs of infrared sensors, 618mm/818mm/1018mm aisle width
> IP54 ingress protection rating
> Integrates easily to access control/visitor management system
> Anti-collision, anti-Reverse, anti-intrusion, anti-trailing
> In the event of power failure, the flaps will unlocked
> Infrared sensor to prevent pinch pedestrians
> Supports combination access authentication
> Pedestrian flow directions can be single or bi-directional
*Swing Turnstile Gate is designed to control pedestrians entering or exiting restricted areas, usually used of high pedestrian traffic flow in both directions.
The body is made of brushed stainless steel and black rubber.
*Swing Turnstile is ideal for both indoor and outdoor settings.
*Swing Barrier has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID, Fingerprint and Biometric reader device).
*Swing Gate has sufficient space, which can mount with any type of external device( e.g.: Display, Counter, Reader, Push button, Card collector, Coin insert,Barcode/QRreader).
*In case of emergency, the optical turnstile arms will open automatically to allow free passage.
*Swing Door support standard and handicapped type with wide passageway, wheelchair, pedestrian with large luggage can pass.
*Swing Barrier Gate is suitable for areas with general pedestrian traffic.(e.g.: Hotel, Building, Dormitory, Station, Supermarket)
