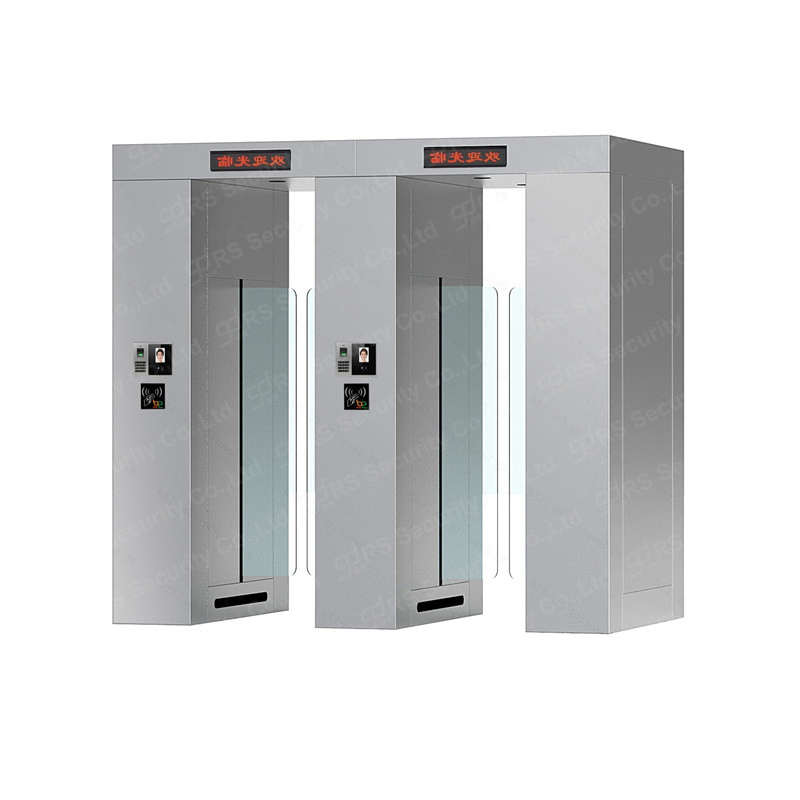

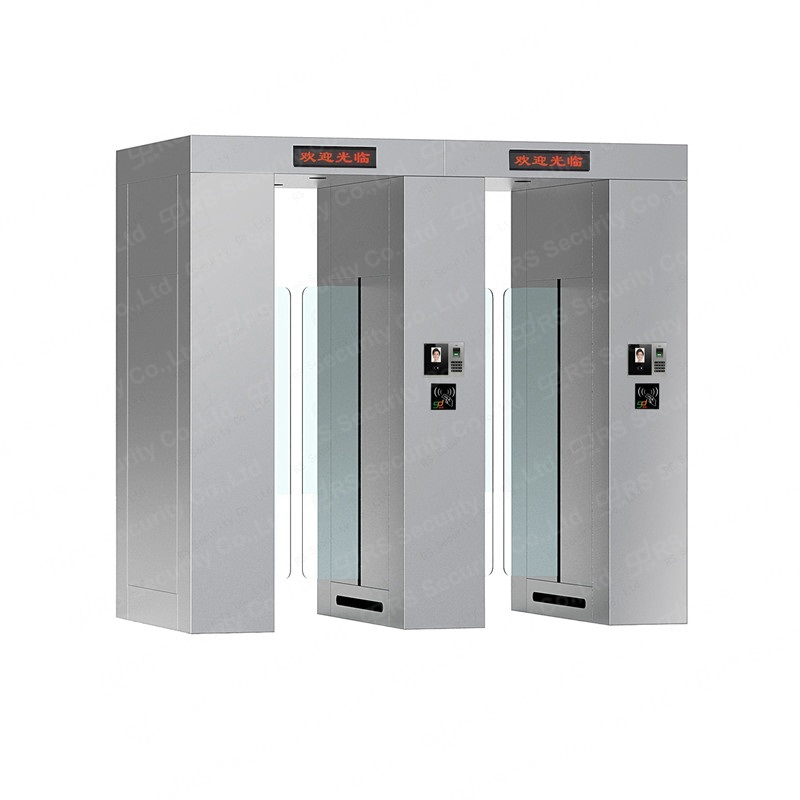

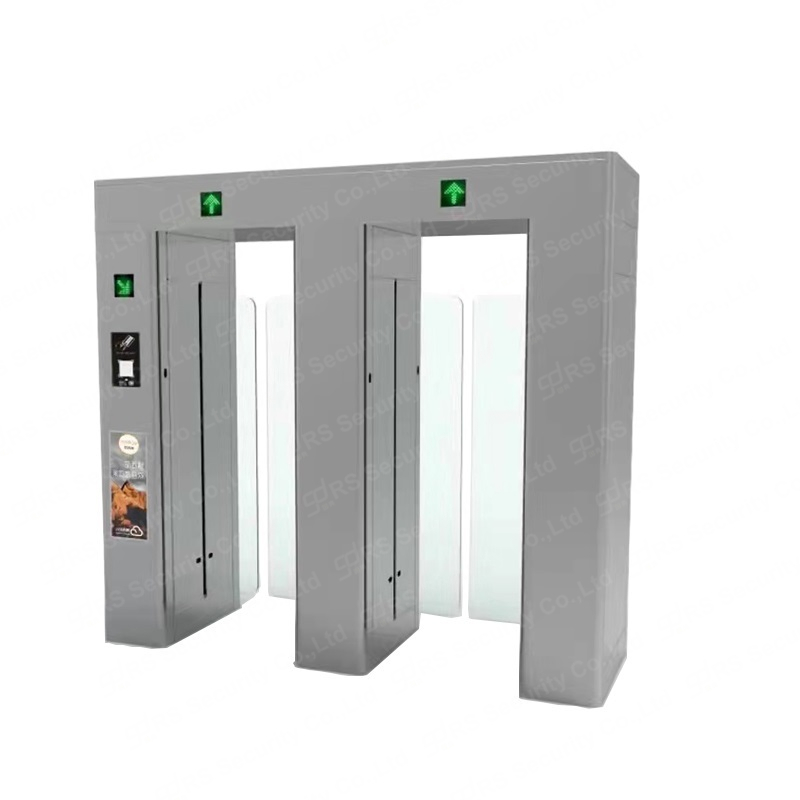

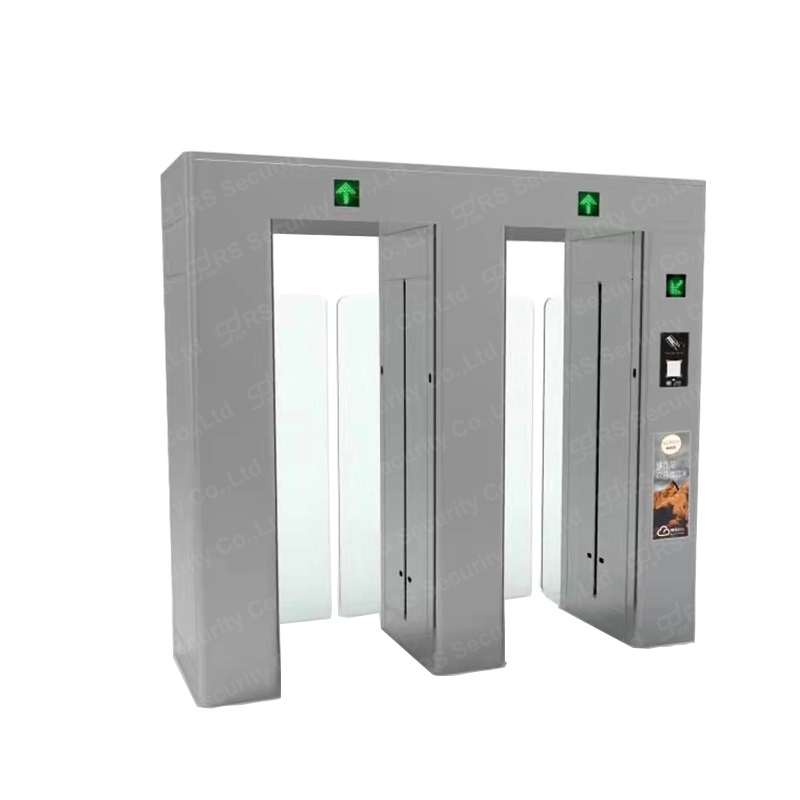

Speed Gate RS 1007-3 Also Called(Speed Turnstile,Sliding Turnstile,Speedlane,Speed Barrier Gate). full body made of 1.5-2.0mm thinckness 304 stainless steel;Speed Barreira RS 1007-3 upgrading product of flap barrier gate.Speed Barrera RS 1007-3 full body made of 304# stainless steel.Speed Barriere RS 1007-3 consist of mechanism,electric circuit,wing,sensors,motor,lem lamp and so on.Speed Torniquete RS 1007-3 the wing hight up to 1400mm from ground.Speed Tourniquet RS 1007-3 anti-crawling,anti-climbing.mainly used in high securit places.Speed Turnstile RS 1007-3 with standard fire interface,wing open for evacuation evean power is not cut off when fire alarm triggered,memory can be set,swipe cards several times for group pass,fast transit speed.Flap Turnstile RS 1007-3 wing color,casing size and sensor number can be customized.


Parameter

Product Name

Speed Gate,Speed Turnstile

Model

RS 1007-3

Brand

Bloccante

Framework Material

304 Full Stainless Steel

Dimension

1400*330*980mm

Get to work state after power on

   3s

Passing Direction

Single directional / Bi-directional

MCBF

5 million

Working Environment

Indoors or outdoors with shed

HS Code

8608009000

Power Supply

AC220V/110V, 50/60Hz

Operation Voltage

24V DC

Power Consumption

20W

Operation Temperature

-15 ° C – 60 ° C

Flow Rate

25-35 people per minute

LED Indicator

Yes

Emergency

Automatic arm drop when power off

Communication Interface

RS485 (Distance: <=1200m), TTL232

Access Control

barcode,ic/id card,face recognition,fingerprint etc;

Function




* Modular reader panel – in-time market response

* Servomotor – faster opening speed

* 10 pairs of infrared sensors for stronger tailgate detection.

* SUS304 stainless steel casing

* Higher durability for longer product life cycle

* Easy switch, easy installation – RFID, fingerprint, face, etc.

* Bi-directional operation control

* LED passage indicator in both directions

* Convenient installation and maintenance

* Various optional panels

* Emergency mode allows free access when power failures or emergency










Feature




^ Single directional or Bi-directional is selectable.

^ Automatic reset function: swing arms will lock automatically within 5s (can be setting) if passenger delay to entry.

^ When power is off, swing arms will open automatically, which is complying with fire safety requirements.

^ LED indicator (red × means no entry; green →means entry) .

^ Easy to install and maintain.3-year warranty support.

^ Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion.

^ Anti-intrusion function, the speed gate is locked automatically until valid opening signal input.

^ Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction .

^ Anti-trailing function, the speed gate alarms if someone wants to burst in without permission.

^ Swing arms automatic resets function: swing arm will reset automatically if is off position after strong hit. The movement will not be broken or damaged for bump .

^ Speed Gate Turnstile has the fastest open and close speed rate, 0.2 second. The open and close speed rate can be adjusted .
