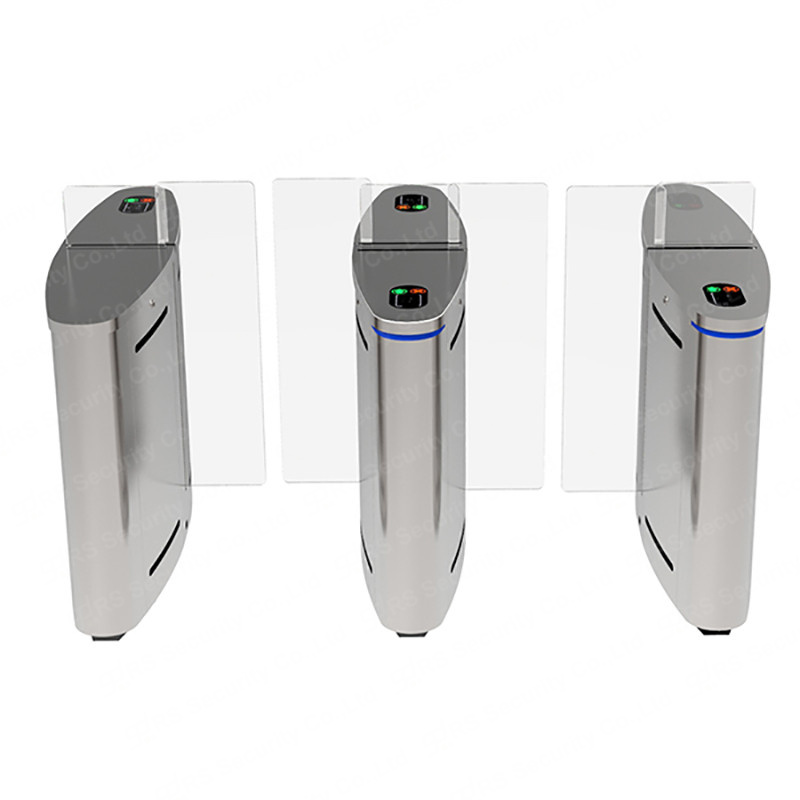

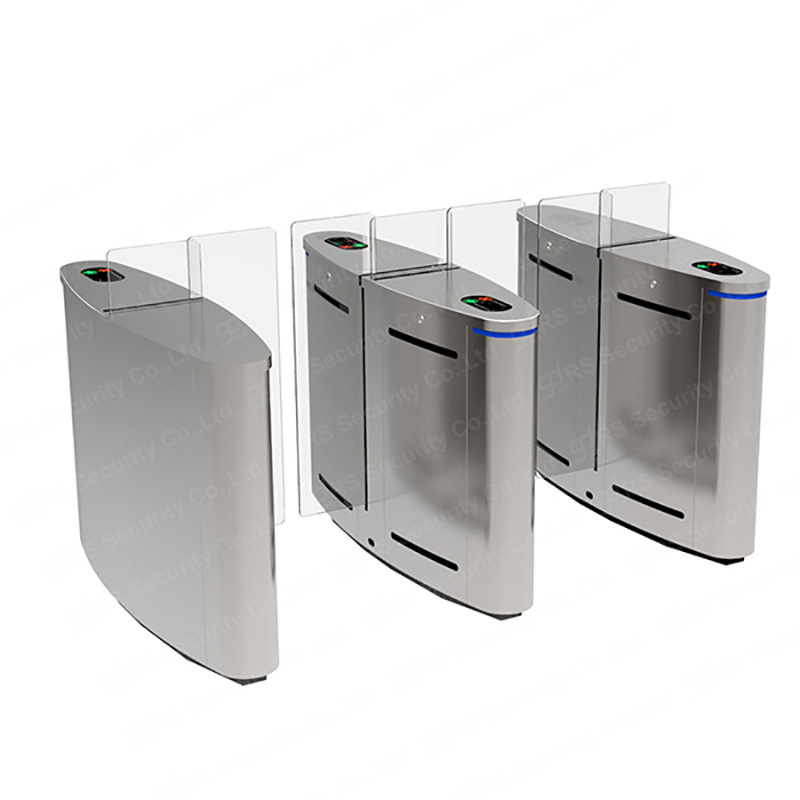

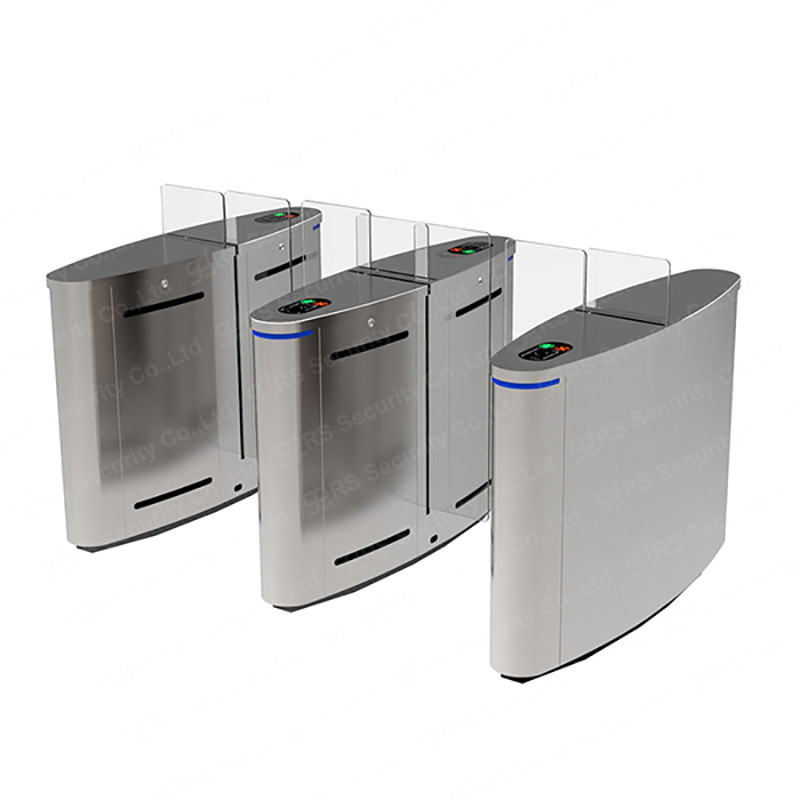

Speed Gate RS 1006A Also Called(Sliding Turnstile,Speed Barrier Gate,Speedlane,Sliding Turnstile). Chassis made of 1.5-2.0mm thinckness 304 or 316 stainless steel;Speed Turnstile RS 1006A upgrading product of flap turnstiles barriers.Flap Turnstile RS 1006A fame is 304 stainless steel.Flap Barrier RS 1006A consist of lem lamp,mechanism,wing,motor,sensors,wing etc.Speed Barreira RS 1006A the wing hight up to 1400mm from ground.Speed Barrera RS 1006A anti-climbing,anti-crawling.mainly used in high securit places.Speed Barriere RS 1006A with standard fire interface,wing open for evacuation evean power is not cut off when fire alarm triggered,memory can be set,swipe cards several times for group pass,fast transit speed.Speed Torniquete RS 1006A sensors number,casing size and wing color can be customized.
Product Name
Speed Gate,Speed Turnstile
Model
RS 1006-A
Brand
Bloccante
Framework Material
304 Full Stainless Steel
Dimension
1400*330*980mm
Get to work state after power on
3s
Passing Direction
Single directional / Bi-directional
MCBF
5 million
Working Environment
Indoors or outdoors with shed
HS Code
8608009000
Power Supply
AC220V/110V, 50/60Hz
Operation Voltage
24V DC
Power Consumption
20W
Operation Temperature
-15 ° C – 60 ° C
Flow Rate
25-35 people per minute
LED Indicator
Yes
Emergency
Automatic arm drop when power off
Communication Interface
RS485 (Distance: <=1200m), TTL232
Access Control
barcode,ic/id card,face recognition,fingerprint etc;
* Modular reader panel – in-time market response
* Servomotor – faster opening speed
* 10 pairs of infrared sensors for stronger tailgate detection.
* SUS304 stainless steel casing
* Higher durability for longer product life cycle
* Easy switch, easy installation – RFID, fingerprint, face, etc.
* Bi-directional operation control
* LED passage indicator in both directions
* Convenient installation and maintenance
* Various optional panels
* Emergency mode allows free access when power failures or emergency
^ Single directional or Bi-directional is selectable.
^ Automatic reset function: swing arms will lock automatically within 5s (can be setting) if passenger delay to entry.
^ When power is off, swing arms will open automatically, which is complying with fire safety requirements.
^ LED indicator (red × means no entry; green →means entry) .
^ Easy to install and maintain.3-year warranty support.
^ Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion.
^ Anti-intrusion function, the speed gate is locked automatically until valid opening signal input.
^ Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction .
^ Anti-trailing function, the speed gate alarms if someone wants to burst in without permission.
^ Swing arms automatic resets function: swing arm will reset automatically if is off position after strong hit. The movement will not be broken or damaged for bump .
^ Speed Gate Turnstile has the fastest open and close speed rate, 0.2 second. The open and close speed rate can be adjusted .
RS Security Co.,Ltd is a company with more than 15 years of experience in turnstile manufacturing. Our high-quality products and many certificates have made us one of the best in the business. Contact us to fulfill all of your access control needs.
