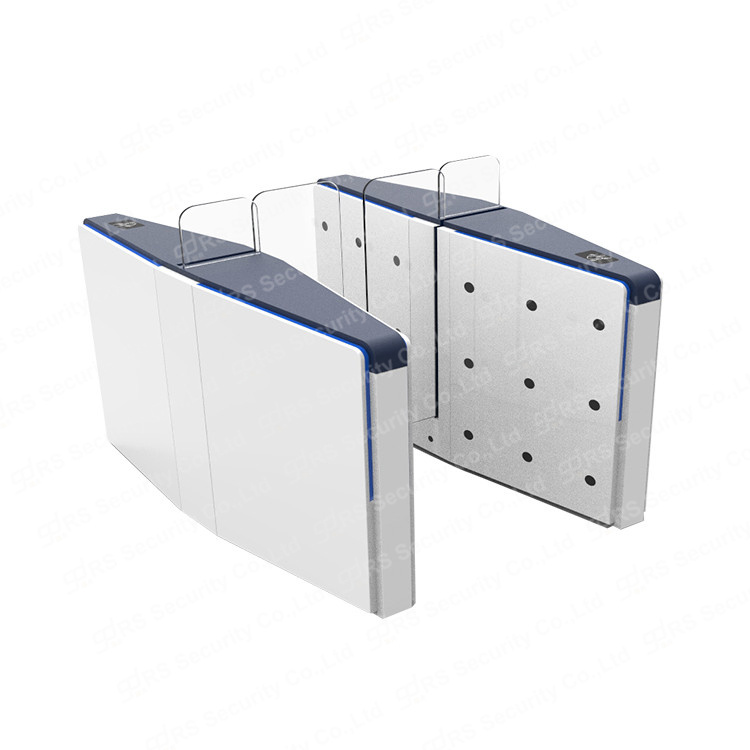

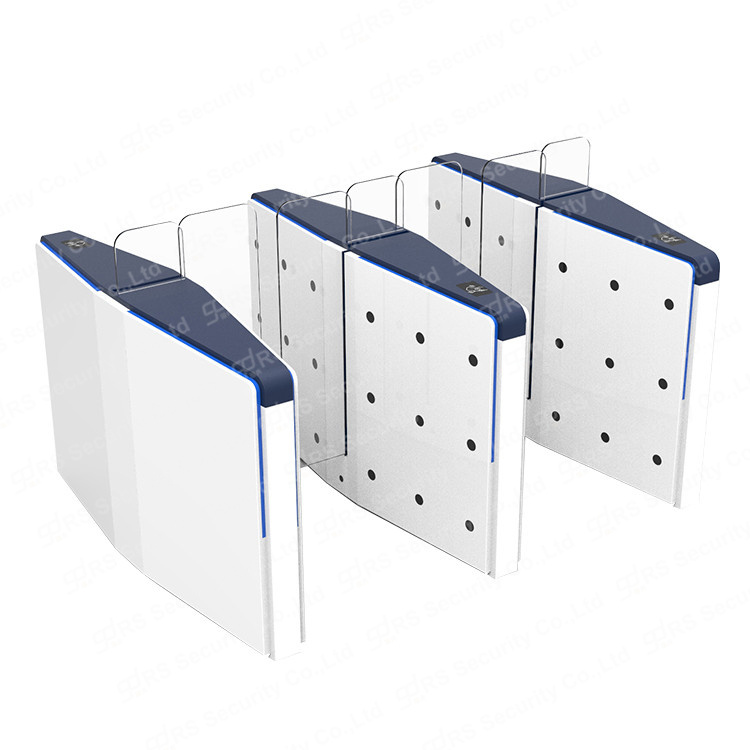

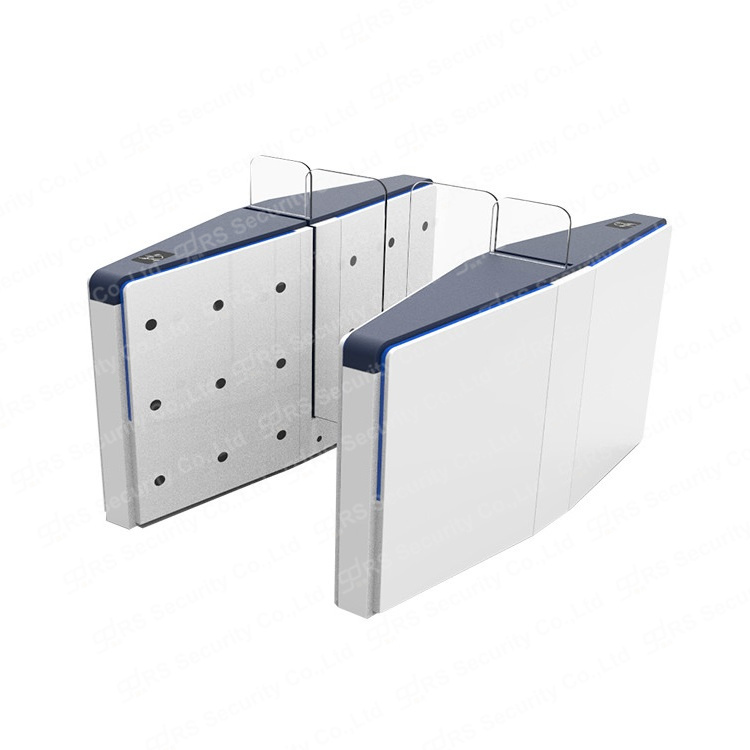

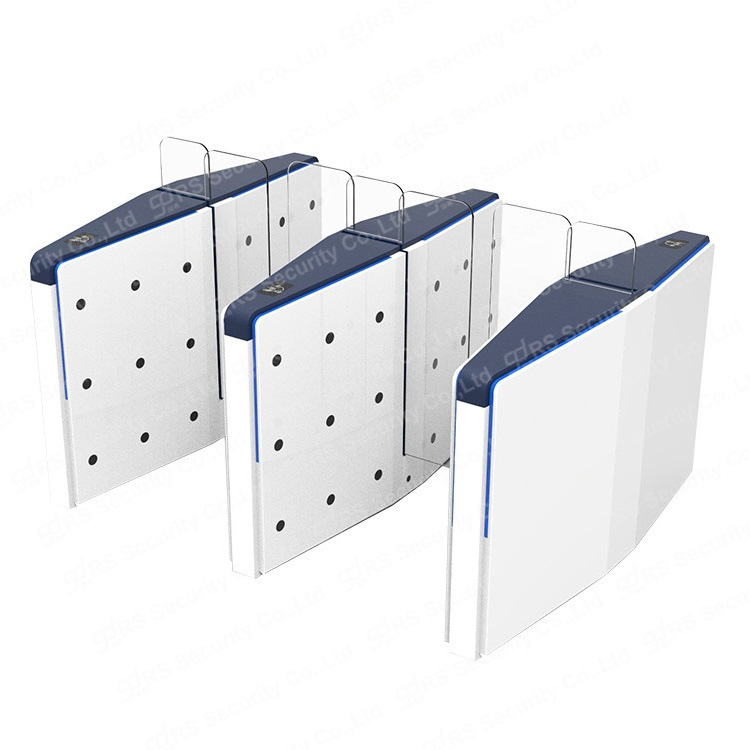

Speed Turnstile RS 1006-1 Also Called(Speed Gate,Sliding Turnstile,Speedlane,Speed Barrier Gate). chassis frame made of 1.5-2.0mm thinckness 304 stainless steel;Flap Turnstile RS 1006-1 upgrading product of flap door turnstile.Flap Barrier RS 1006-1 full body made of 304# stainless steel.Speed Barreira RS 1006-1 consist of electric circuit,lem lamp,mechanism,wing,sensors,motor and so on.Speed Barrera RS 1006-1 the wing hight up to 1400mm from ground.Speed Barriere RS 1006-1 anti-crawling,anti-climbing.mainly used in high securit places.Speed Torniquete RS 1006-1 with standard fire interface,wing open for evacuation evean power is not cut off when fire alarm triggered,memory can be set,swipe cards several times for group pass,fast transit speed.Speed Tourniquet RS 1006-1 wing color,casing size and sensor number can be customized.
Speed Gate,Speed Turnstile
304 Full Stainless Steel
Get to work state after power on
Single directional / Bi-directional
Indoors or outdoors with shed
-15 ° C – 60 ° C
25-35 people per minute
Automatic arm drop when power off
RS485 (Distance: <=1200m), TTL232
barcode,ic/id card,face recognition,fingerprint etc;
* Modular reader panel – in-time market response
* Servomotor – faster opening speed
* 10 pairs of infrared sensors for stronger tailgate detection.
* SUS304 stainless steel casing
* Higher durability for longer product life cycle
* Easy switch, easy installation – RFID, fingerprint, face, etc.
* Bi-directional operation control
* LED passage indicator in both directions
* Convenient installation and maintenance
* Various optional panels
* Emergency mode allows free access when power failures or emergency
^ Single directional or Bi-directional is selectable.
^ Automatic reset function: swing arms will lock automatically within 5s (can be setting) if passenger delay to entry.
^ When power is off, swing arms will open automatically, which is complying with fire safety requirements.
^ LED indicator (red × means no entry; green →means entry) .
^ Easy to install and maintain.3-year warranty support.
^ Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion.
^ Anti-intrusion function, the speed gate is locked automatically until valid opening signal input.
^ Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction .
^ Anti-trailing function, the speed gate alarms if someone wants to burst in without permission.
^ Swing arms automatic resets function: swing arm will reset automatically if is off position after strong hit. The movement will not be broken or damaged for bump .
^ Speed Gate Turnstile has the fastest open and close speed rate, 0.2 second. The open and close speed rate can be adjusted .
