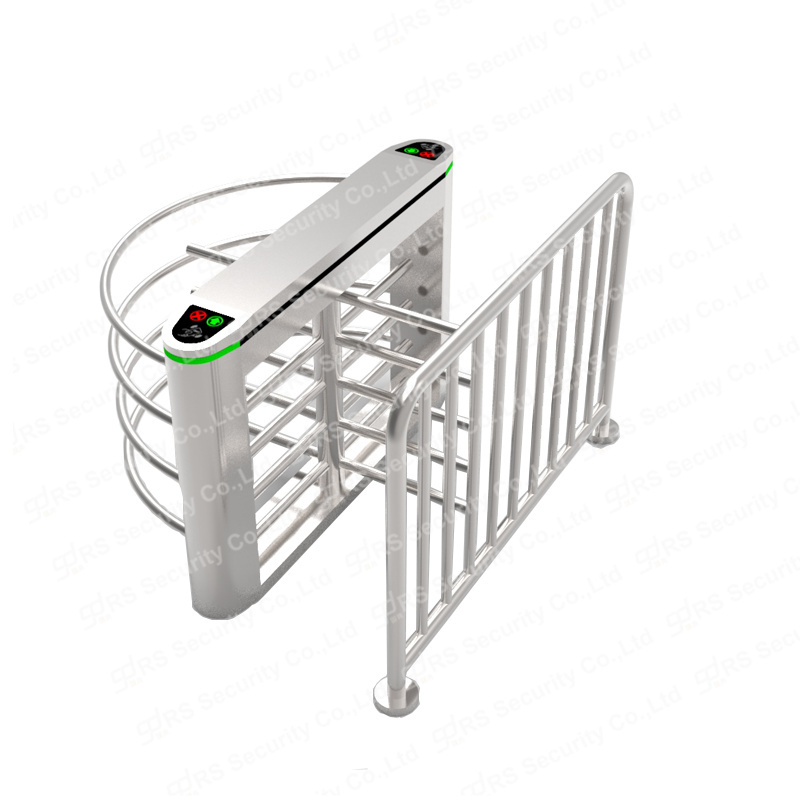

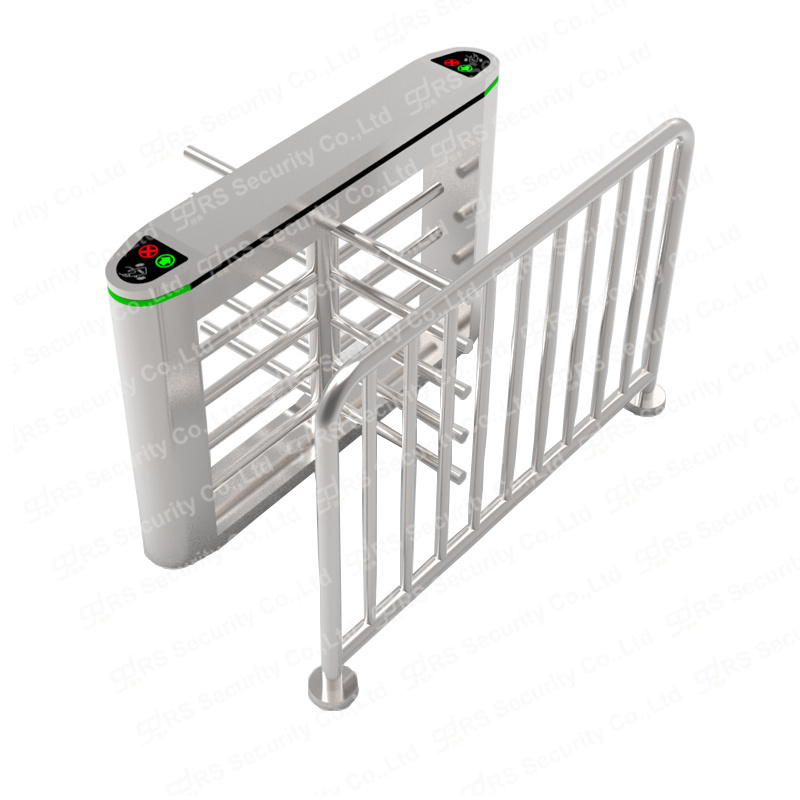

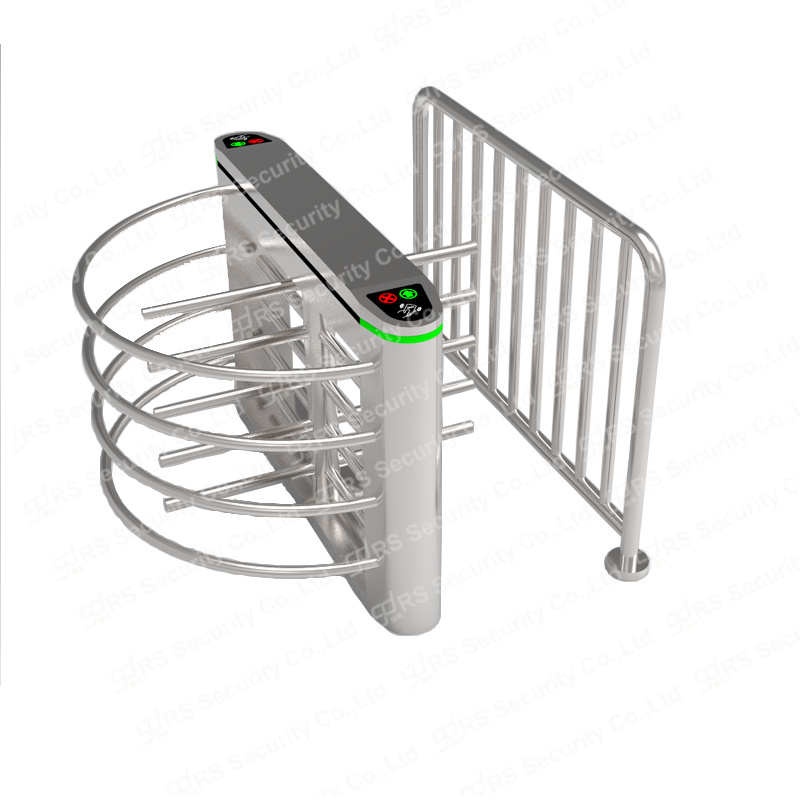

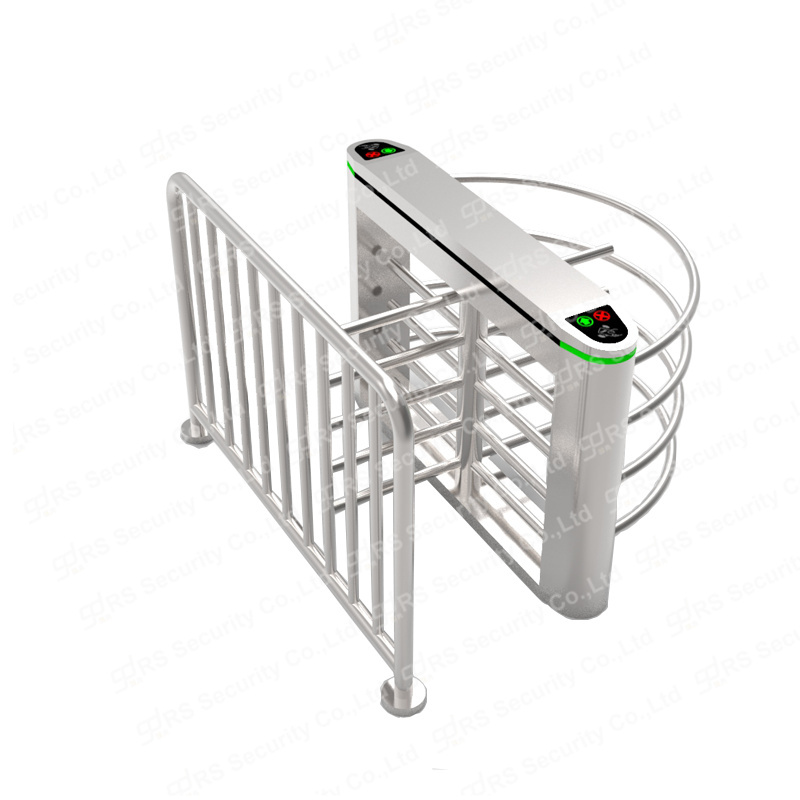

Waist Height Turnstile RS 995-3 Also Called(Half High Turnstile,Half Height Turnstile,Half Height Barrier,Half High Barrier) is an upgraded product of Tripod Turnstile.Half Height Gate RS 995-3 full body made of 316 or 304 stainless steel;housing thinckness is 2.0mm.Half Height Door RS 995-3 is divided into 90 degrees and 120 degrees, mainly used for the management of the channel entrance and exit, with eliminate illegal access, convenience,safety and in the case of emergency quick control of free access and other characteristics.Half Height Barrier RS 995-3 consist of electric circuit,mechanism,bars,electromagnetic,hydrulic damper,led lamp and so on.Half Height Turnstile RS 995-3 with standard fire interface,arm can be free rotation by force for evacuation even power is not cut off when fire alarm triggered.Half High Turnstile RS 995-3 anti-passback,with ydraulic damper,low impact sound and high durability.Half High Barrier RS 995-3 is widely used in docks,factory,airports, stations, scenic spots, parks, smart communities, prisons and other occasions.Waist High Turnstile RS 995-3 waterproof and light proof,corrosion resistance,high temperature resistance,strong pit rust ,durable,and still as new after many years of use.
Product Name
Half Height Turnstile
Model
RS 995-3
Brand
Bloccate
Framework Material
304 Stainless Steel;2.0mm thickness;
Size
1400*280*980mm
Weight
120KG
Blades
3PCS
Angle Degree
≤90/120 degree
Arm Length
≤510mm
HS Code
8608009000
Power Supply
AC220V/110V, 50/60Hz
Operation Voltage
24V DC
Power Consumption
20W
Operation Temperature
-15 ° C – 60 ° C
Flow Rate
20-25 people per minute
barrel
connecting
Emergency
Automatic arm drop when power off
Communication Interface
RS485 (Distance: <=1200m), TTL232
Access Control
barcode,ic/id card,face recognition,fingerprint etc;
* Electric control adopts electromagnet to drive safe and reliable;
Power-off and gate-opening functionAfter power off, the gate lever is automatically unlocked and becomes a free passage mode, which is convenient for evacuation of people;
*Anti-rotation functionAfter the brake lever is rotated to a certain angle, the strong reverse rotation of the brake lever will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from moving backward;
*The shape can be brushed stainless steel or sprayed, and the color is optional.
*Brushed stainless steel, rust-proof, strong and durable
Customized extension functions:
1. The all-stainless steel rainproof box is novel and beautiful.
2. It has a personalized installation interface (such as card reader, indicator light installation, etc.) to ensure that the control gate equipment of the system integrator is simple and convenient during installation.
3. The movement of the turnstile has an automatically adjustable hydraulic shock absorber. When the turnstile is used for movement, the sound is very small, no impact, and the brake lever automatically decelerates back to the center. The surface of the movement is electroplated with yellow dichromate.
4. It can be programmed with gate control, one or two direction control (set by the user).
