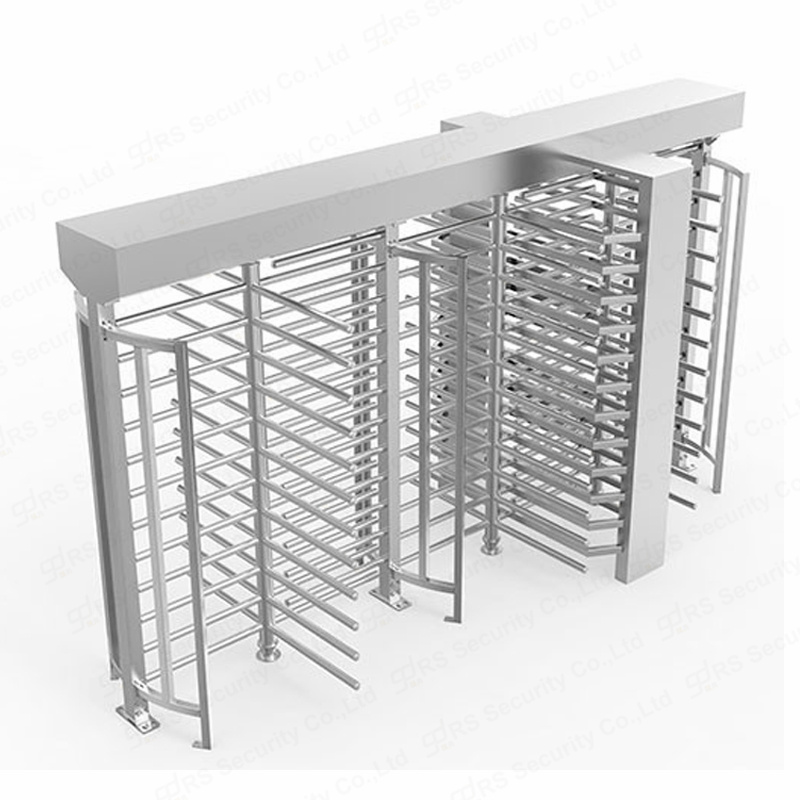

Full Height Door RS 998-2B Also Called(Full Height Gate,Full Height Turnstile,Full Height Barrier,Full Body Turnstile) is divided into 90 degrees and 120 degrees, mainly used for the access control entrance and exit, with convenience,safety,eliminate illegal access and in the case of emergency quick control of free access and other characteristics.Full High Turnstile RS 998-2B consist of electromagnetic,hydraulic damper,electric circuit,bars,led lamp,mechanism,and so on;Full Height Turnstile RS 998-2B housing case is made of 1.5 – 2.0mm thickness 304# stainless stell;Full Height Door RS 998-2B is widely used in airports,scenic spots,docks,stations,parks,smart communities,factory,prisons and other occasions that need to realize intelligent management of channels.Full Body Turnstile RS 998-2B is pedestrian access the upgrading product of tripod turnstile.Full Body Barrier RS 998-2B with standard fire interface,arm can be free rotation by force for evacuation even power is not cut off when fire alarm triggered.Full High Gate RS 998-2B anti-passback,with hydraulic damper,low impact sound and high durability.Full High Barrier RS 998-2B can external third-party devices such as: reader,wheel,qr code,barcode,coin insert,push button and so on;
Full Height Turnstile
304 Stainless Steel;2.0mm thickness;
Indoors or outdoors with shed
-15 ° C – 60 ° C
20-25 people per minute
Automatic arm drop when power off
RS485 (Distance: <=1200m), TTL232
barcode,ic/id card,face recognition,fingerprint etc;
1) the transmission system combining the unique manual rotating brake lever with the automatic reset, automatic locking and unlocking mechanism makes the running of the turnstile door safer, more reliable and more convenient.
2) the whole system runs smoothly with little noise.
3) there are a variety of working modes to choose from, including two-way card reading and limiting the current, or reading the card on one side, forbidden to travel in the other direction, reading the card on the other side, and free passage in the other direction, and the working mode of the brake can be set by the user through the built-in touch button. (select single channel or multiple channels according to the occasion)
4) it has the function of remote operation to drop the bar, so as to meet the special needs of users and fire safety requirements.
5) it has a unified and standard external electrical interface, which can be connected with various reading and writing devices to facilitate system integration, and can achieve remote control and management through the management computer.
6) it can automatically count the number of passers in the passing direction and has LED display.
7) it has a clear function of passage indication. It can indicate whether passage is allowed or forbidden to the passer in an intuitive LED or backlight.
8) with or without the memory function, and users can set it according to their own needs through the built-in touch button.
9) with automatic reset function. When the passer fails to pass within the specified time after reading the card, the system will automatically cancel the passer's access, and the limited access time can be set by the management.
Customized extension functions:
1. Count, alarm function, face recognition, fingerprint, qr code, LED screen display, touch screen, etc
2. The common height and width can be customized according to the occasion requirements to meet different customers' requirements for security and appearance
3. The chassis material is mainly 304 and A3 steel, other materials can also be customized
4. It can connect with remote control switch, access control system, consumption system, attendance system, electronic ticket system, biometric identification system, electrostatic tester, two-dimensional code authorization of residential visitors and residents and other devices and functions
