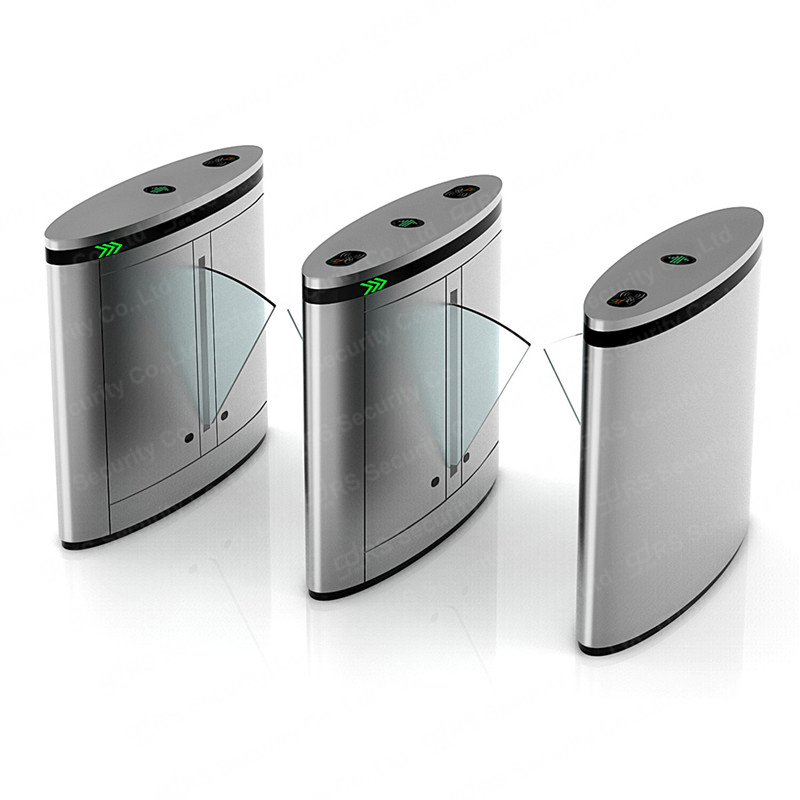

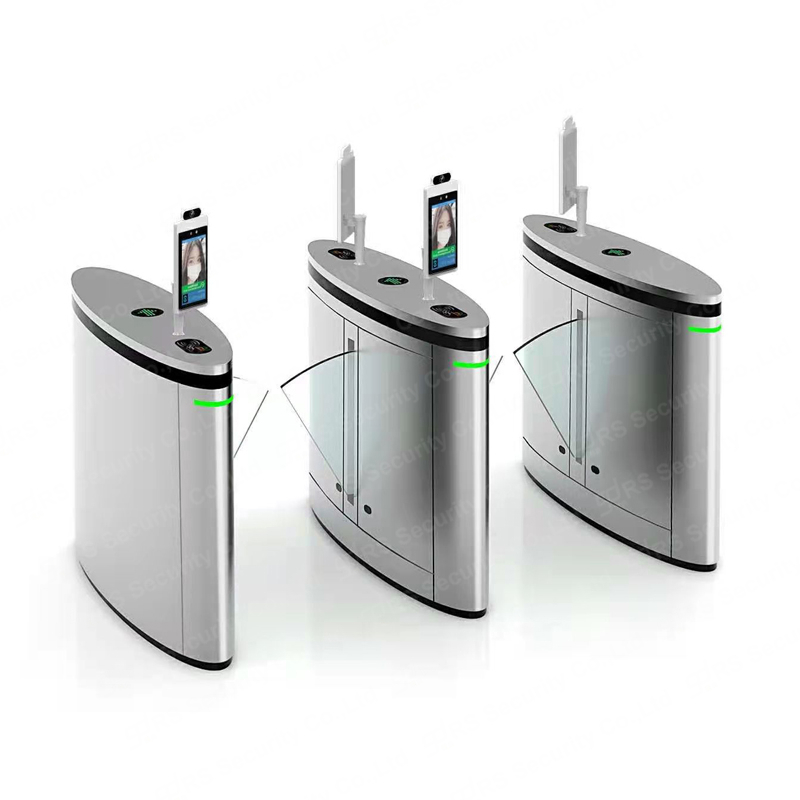

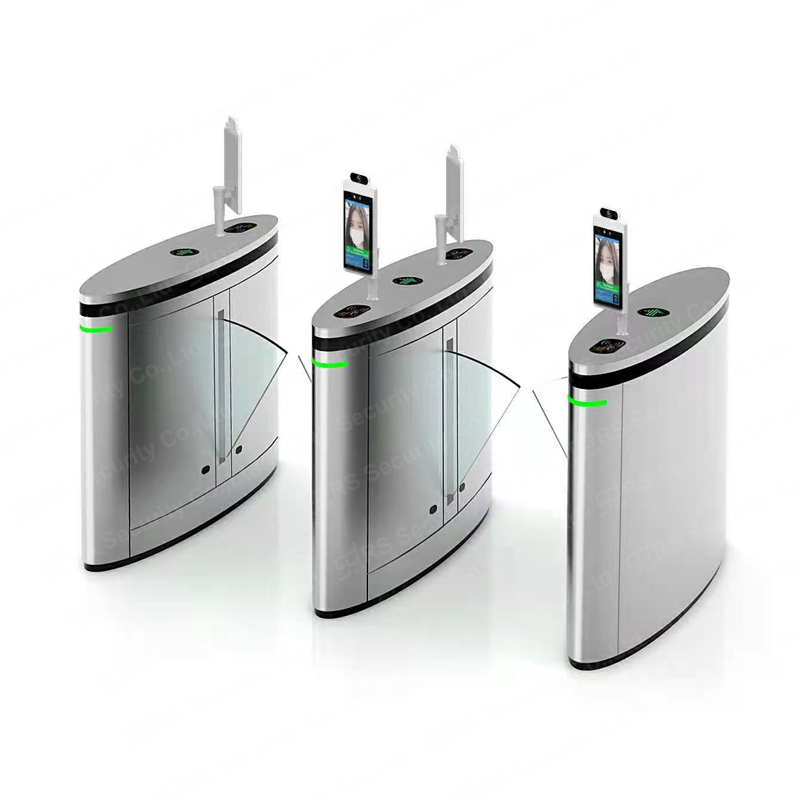

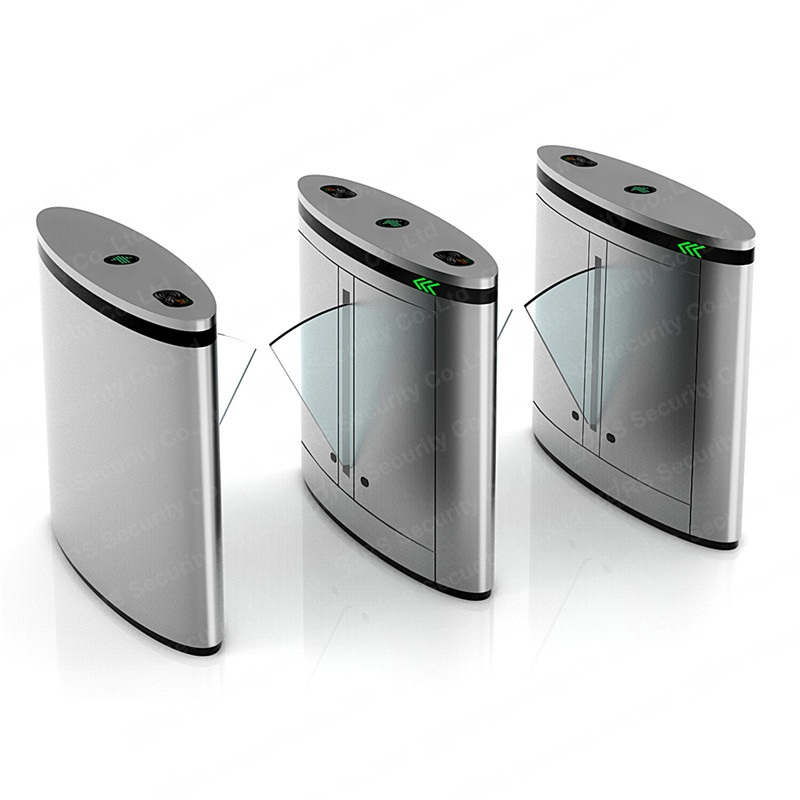

Flap Barrier RS 888F1

Flap Turnstiles RS 888F1 Also Called(Flap Doors,Flap Barriers,Flap Gates,Metro Gate) is made of 304 SUS Stainless Steel;Subway Flap Turnstile RS 888F1 consist of electric circuit,mechanism,motor(servo motor or dc motor),sensors,battery,led lamper,buzzer,swing barrier,and so on;Metro Flap Barrier RS 888F1 swing doors provides flexible passageway access control,the control with from 300-1600mm.Metro Flap Turnstile RS 888F1 has different program for bicycle or pedestrian,word with high sensitivity sensors to en sure safety of people.Flap Barrier Turnstile RS 888F1 with standard fire interface,arm can drop down for evacuation even power is not cut off when fire alarm triggered. Gym,Cinema,Labrary,Factory,Ferry,Subway Stantion and School;Flap Barrier Gates RS 888F1 has sufficient space, which can be mounted with any type of external device( e.g.:display,push,counter,reader,button,card collector,coin insert,bardcoe/qr code,wheel).Fare Turnstile RS 888F1 has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.:facial recognition ,IC/ID reader,biometric reader device and fingerprint).Flap Door Turnstile RS 888F1 is ideal for both indoor and outdoor settings.

Product Name

Flap Barrier,Flap Turnstile

Model

RS 888F1

Arm Length

260mm

Material

304 Stainless Steel;2.0mm thickness;

Dimension

1200*300*980mm

Net Weight

   70kg/pcs

Passing Direction

Single directional / Bi-directional

MCBF

5 million

Working Environment

Indoors or outdoors with shed

HS Code

8608009000

Power Supply

AC220V/110V, 50/60Hz

Operation Voltage

24V DC

Power Consumption

20W

Operation Temperature

-15 ° C – 60 ° C

Flow Rate

25-35 people per minute

LED Indicator

Yes

Emergency

Automatic arm drop when power off

Communication Interface

RS485 (Distance: <=1200m), TTL232

Access Control

barcode,ic/id card,face recognition,fingerprint etc;

* flap turnstile is to control pedestrian entry or exit in restricted areas, usually used in high pedestrian traffic flow in both directions.

*The body is made of brushed stainless steel and black rubber on the slant side of top cover.

*Flap Turnstile is ideal for both indoor and outdoor settings.

*Flap Barrier has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID,Fingerprint and Biometric reader device).

*Flap Barrier Gate has sufficient space, which can be mounted with any type of external device( e.g.: Display, Counter, Reader, Push

button, Card collector, Coin insert, Barcode/QR reader, Wheel).

*In case of emergency, the flap arms will open automatically to allow free passage when power off.

*Flap Turnstiles is suitable for areas with high pedestrian traffic (e.g.: Hotel, Building, Dormitory, Station, Airport, Park).

*3-year warranty support.

*Single directional or Bi-directional is selectable.

*The whole system runs smoothly, low noise, no mechanical impact.

*Long-life performance, high operation dependability and fast response.

*Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion.

*LED indicator (red × means no entry; green →means entry). Easy to install and maintain.

Anti-*trailing function, the turnstile alarm if someone wants to burst in without permission

*Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction.

*Anti-intrusion function, the turnstile is locked automatically until valid opening signal input.

*When power is off, flap arms will open automatically, which is complying with fire safety requirements.

*Automatic reset function: flap arms will lock automatically within 5s (can be setting) if passenger delay to entry.
