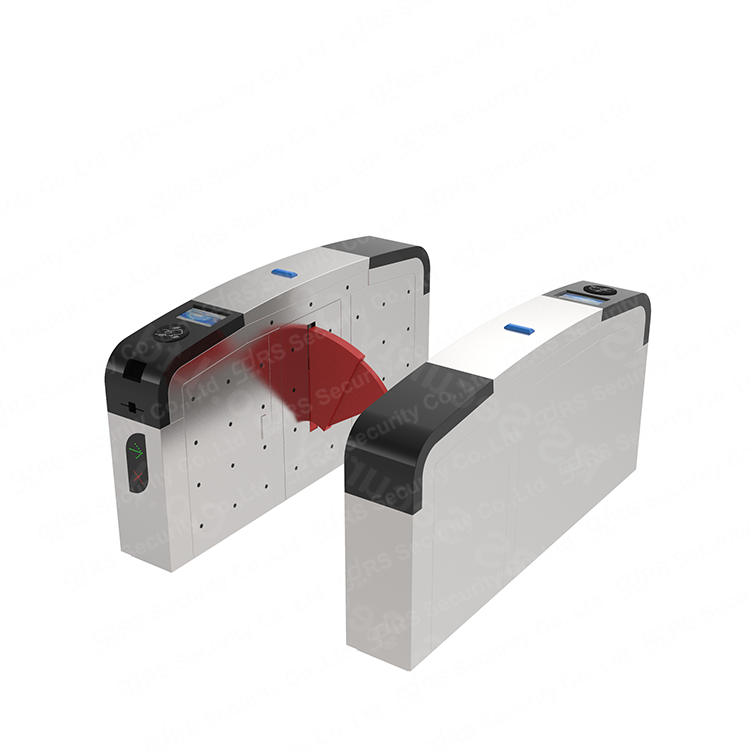

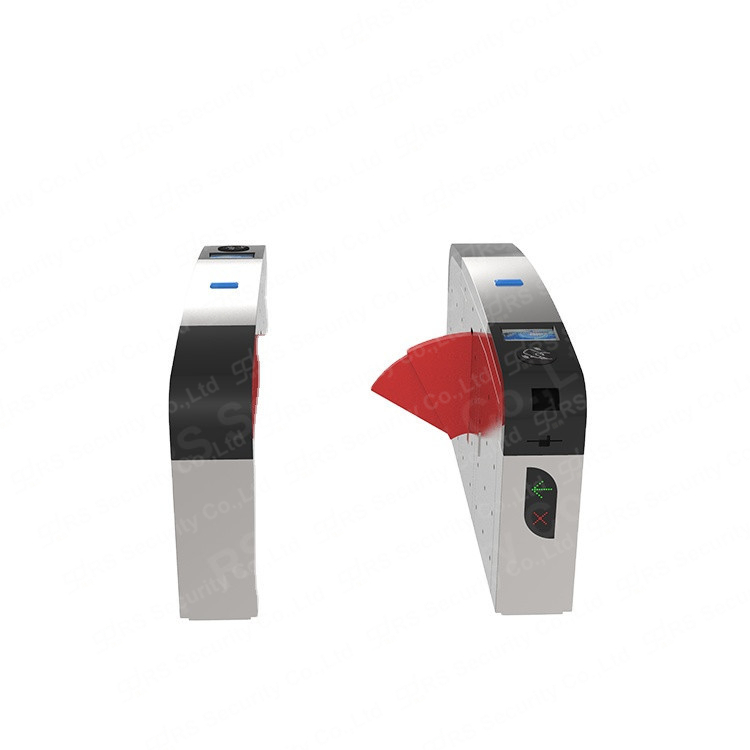

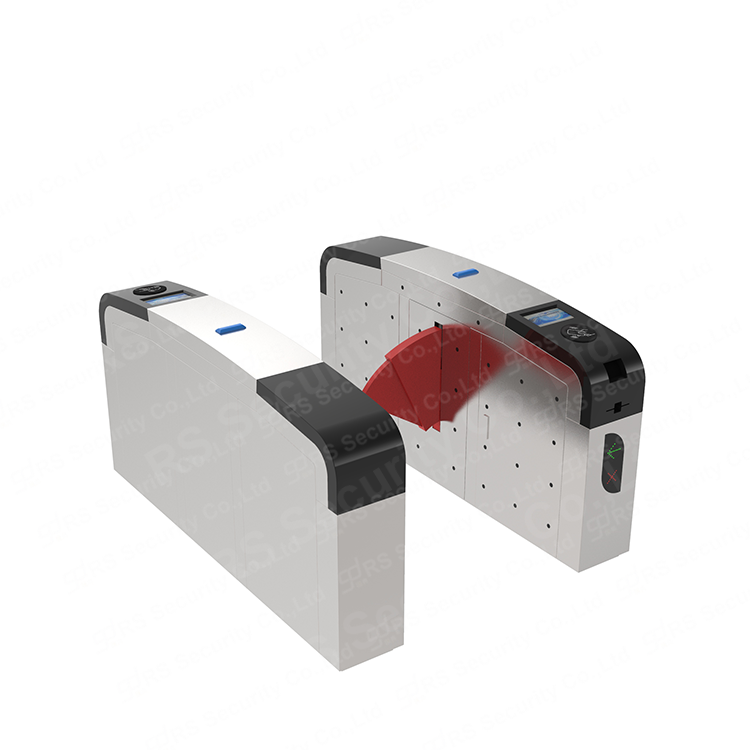

Flap Turnstiles RS 288-1 Also Called(Flap Gate,Flap Barrier,Flap Door,Fare Turnstiles) is made of 304 or 316 Stainless Steel;Flap Barrier Gate RS 288-1 consist of electric circuit,motor(servo motor or dc motor),sensors,swing barrier,led lamper,buzzer,battery,mechanism,and so on;Flap Turnstile Gate RS 288-1 swing doors provides flexible passageway access control,the control with from 300-1600mm.Flap Gate Turnstile RS 288-1 has different program for bicycle or pedestrian,word with high sensitivity sensors to en sure safety of people.Metro Gate RS 288-1 with standard fire interface,arm can drop down for evacuation even power is not cut off when fire alarm triggered. School,Gym,Ferry,Factory,Labrary,Cinema and Subway Stantion;Subway Gate RS 288-1 has sufficient space, which can be mounted with any type of external device( e.g.:counter,reader,push,button,card collector,coin insert,bardcoe/qr code,wheel,display).Flap Tourniquet RS 288-1 has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.:Fingeripint ,Biometric reader device,Face Recognition and RFID).Subway Turnstile RS 288-1 is ideal for both indoor and outdoor settings.
Flap Barrier,Flap Turnstile
304 Stainless Steel;2.0mm thickness;
Single directional / Bi-directional
Indoors or outdoors with shed
-15 ° C – 60 ° C
25-35 people per minute
Automatic arm drop when power off
RS485 (Distance: <=1200m), TTL232
barcode,ic/id card,face recognition,fingerprint etc;
* flap turnstile is to control pedestrian entry or exit in restricted areas, usually used in high pedestrian traffic flow in both directions.
*The body is made of brushed stainless steel and black rubber on the slant side of top cover.
*Flap Turnstile is ideal for both indoor and outdoor settings.
*Flap Barrier has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID,Fingerprint and Biometric reader device).
*Flap Barrier Gate has sufficient space, which can be mounted with any type of external device( e.g.: Display, Counter, Reader, Push
button, Card collector, Coin insert, Barcode/QR reader, Wheel).
*In case of emergency, the flap arms will open automatically to allow free passage when power off.
*Flap Turnstiles is suitable for areas with high pedestrian traffic (e.g.: Hotel, Building, Dormitory, Station, Airport, Park).
*3-year warranty support.
*Single directional or Bi-directional is selectable.
*The whole system runs smoothly, low noise, no mechanical impact.
*Long-life performance, high operation dependability and fast response.
*Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion.
*LED indicator (red × means no entry; green →means entry). Easy to install and maintain.
Anti-*trailing function, the turnstile alarm if someone wants to burst in without permission
*Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction.
*Anti-intrusion function, the turnstile is locked automatically until valid opening signal input.
*When power is off, flap arms will open automatically, which is complying with fire safety requirements.
*Automatic reset function: flap arms will lock automatically within 5s (can be setting) if passenger delay to entry.
