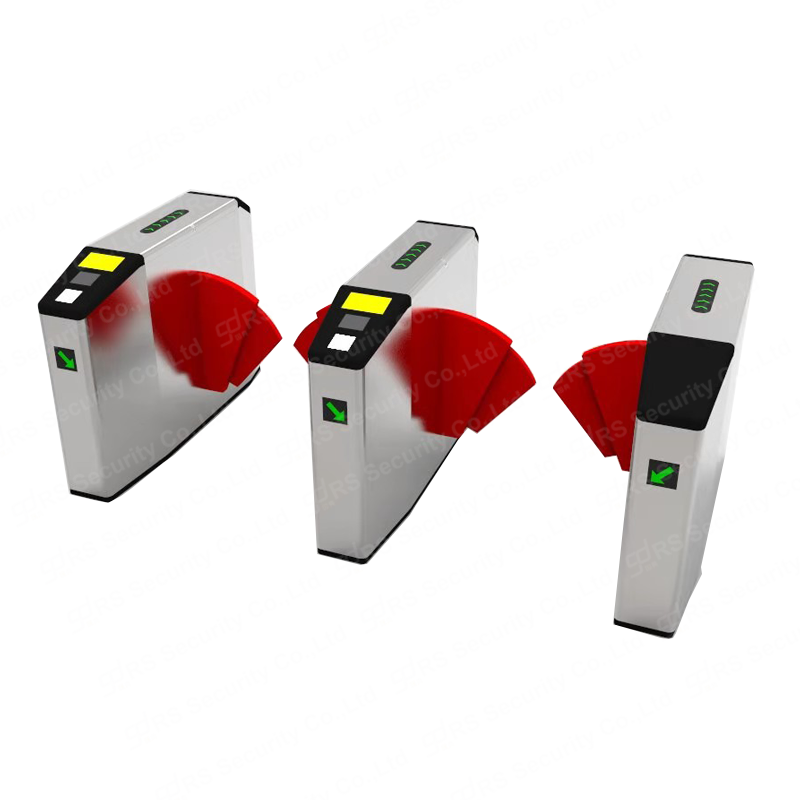

Flap Barrier RS 688-8

Flap Turnstile RS 688-8 Also Called(Flap Doors,Flap Gates,Flap Barriers,Fare Door) is made of 304 SUS Stainless Steel;Subway Flap Turnstile RS 688-8 consist of buzzer,battery,mechanism,electric circuit,motor(servo motor or dc motor),sensors,swing barrier,led lamper,and so on;Metro Flap Turnstile RS 688-8 swing door provides flexible passageway access control,the control with from 300-1600mm.Metro Flap Barrier RS 688-8 has different program for pedestrian or bicycle,word with high sensitivity sensors to en sure safety of people.Flap Barrier Turnstile RS 688-8 with standard fire interface,arm can drop down for evacuation even power is not cut off when fire alarm triggered. Cinema,Subway Stantion,School,Gym,Ferry,Factory and Labrary;Flap Door Turnstile RS 688-8 has sufficient space, which can be mounted with any type of external device( e.g.:coin insert,bardcoe/qr code,wheel,display,counter,reader,push,button,card collector).Flap Barrera RS 688-8 has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.:biometric reader device ,IC/ID reader,fingerprint and facial recognition).Flap Barrier Gates RS 688-8 is ideal for both indoor and outdoor settings.

Product Name

Flap Barrier,Flap Turnstile

Model

RS 688-8

Arm Length

260mm

Material

304 Stainless Steel;2.0mm thickness;

Dimension

1200*300*980mm

Net Weight

   70kg/pcs

Passing Direction

Single directional / Bi-directional

MCBF

5 million

Working Environment

Indoors or outdoors with shed

HS Code

8608009000

Power Supply

AC220V/110V, 50/60Hz

Operation Voltage

24V DC

Power Consumption

20W

Operation Temperature

-15 ° C – 60 ° C

Flow Rate

25-35 people per minute

LED Indicator

Yes

Emergency

Automatic arm drop when power off

Communication Interface

RS485 (Distance: <=1200m), TTL232

Access Control

barcode,ic/id card,face recognition,fingerprint etc;

* flap turnstile is to control pedestrian entry or exit in restricted areas, usually used in high pedestrian traffic flow in both directions.

*The body is made of brushed stainless steel and black rubber on the slant side of top cover.

*Flap Turnstile is ideal for both indoor and outdoor settings.

*Flap Barrier has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID,Fingerprint and Biometric reader device).

*Flap Barrier Gate has sufficient space, which can be mounted with any type of external device( e.g.: Display, Counter, Reader, Push

button, Card collector, Coin insert, Barcode/QR reader, Wheel).

*In case of emergency, the flap arms will open automatically to allow free passage when power off.

*Flap Turnstiles is suitable for areas with high pedestrian traffic (e.g.: Hotel, Building, Dormitory, Station, Airport, Park).

*3-year warranty support.

*Single directional or Bi-directional is selectable.

*The whole system runs smoothly, low noise, no mechanical impact.

*Long-life performance, high operation dependability and fast response.

*Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion.

*LED indicator (red × means no entry; green →means entry). Easy to install and maintain.

Anti-*trailing function, the turnstile alarm if someone wants to burst in without permission

*Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction.

*Anti-intrusion function, the turnstile is locked automatically until valid opening signal input.

*When power is off, flap arms will open automatically, which is complying with fire safety requirements.

*Automatic reset function: flap arms will lock automatically within 5s (can be setting) if passenger delay to entry.
