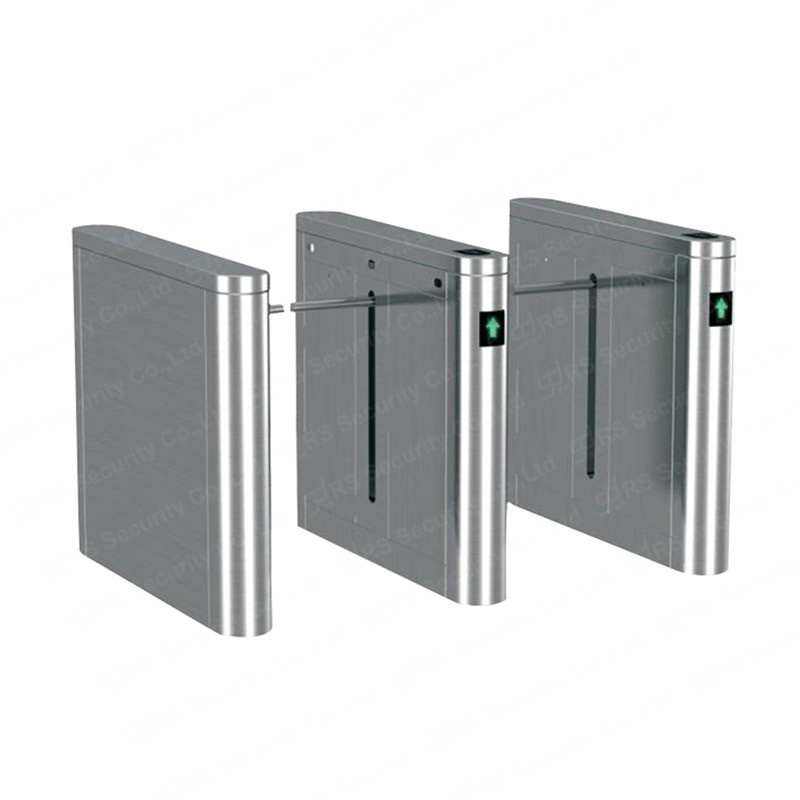

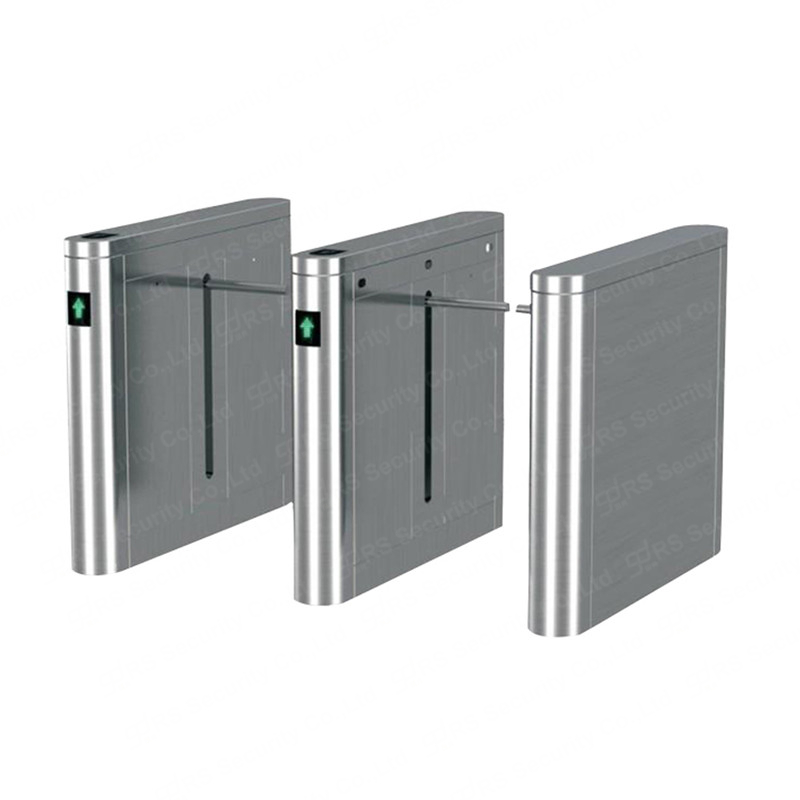

Drop Arm Gate RS 1009 Also Called(Drop Arm Barrier,Optical Turnstile,One Arm Turnstile,Drop Arm Turnstile). chassis shell made of 1.5-2.0mm thinckness 304# stainless steel;Optical Turnstile RS 1009 consist of sensors,moterboard,card reader,led lamp,bars,electric circuit,mechanism,motor and so on.Optical Barrier RS 1009 is upgrading product of swing turnstile,with smaller casing and mechanism.Optical Barrier Gate RS 1009 memory can be set,swipe cards several times for group pass,fast transit speed.Drop Arm Turnstile RS 1009 with standard fire interface,arm can drop down for evacuation even power is not cut off when fire alarm triggered.Drop Arm Barrier RS 1009 is widely used in residential area,bus station,port,mansion,hotel and other place that requires a smart flow control.Drop Arm Gate RS 1009 Provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. Arm drops off in condition of emergencies.Optical Turnstile Gate RS 1009 requires smaller space.
Product Name
Drop Arm Barrier
Model
RS 1009
Brand
Bloccante
Material
304 Stainless Steel;2.0mm thickness;
Dimension
1200*165*980mm
Passage length
Q 600 mm
Passing Direction
Single directional / Bi-directional
Service Life
5,000,000 cycles
Noise
≤50dB
HS Code
8608009000
Power Supply
AC220V/110V, 50/60Hz
Operation Voltage
24V DC
Power Consumption
20W
Operation Temperature
-15 ° C – 60 ° C
Flow Rate
25-35 people per minute
LED Indicator
Yes
Emergency
Automatic arm drop when power off
Communication Interface
RS485 (Distance: <=1200m), TTL232
Access Control
barcode,ic/id card,face recognition,fingerprint etc;
1.Can be linked with a variety of control equipments, receiving the signal of relay switch .
2.Double protections of Mechanical and infrared anti-pinch function.providing more reliable and safer passing.
3.Multi alarm modes:illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.
4.Anti-rush function,Anti-Reverse,anti-intrusion, anti-follow.
5.LED indicator light :green and red indicate the passing information.
6.Normal open and normal close can be controlled by external button.
7.Auto detect and reset function.
8.Gate auto open when power is off to meet the fire protection requirements.
9.Drop arm turnstile Can be linked with a variety of control equipments, receiving the signal of relay switch.
10.Drop arm turnstile can be uni-directional or bi-directional control.
11.Flexible code dialing settings, having about dozens types performance for your selection.
12.Impact resistant, without receiving the open signal, turnstile arm locks automatically.
13.High adaptability for environment, and good ability for self-protection.Can work properly under all kinds of harsh environment, strong ego-protect ability, can adapt to the weak current short circuit, glare, fog rain and snow, the typhoon weather and climate charge
Stainless steel material:the shell is made of 304 stainless steel high temperature and corrosion resistance,durable dustproof and rainproof design for outdoor use.
Intelligent motherboard:the operation mode of the brake machine can be set up by the main board self drive borad adopts original mitsubishi heavy-duty design for 24 hours continuous application.
Contrlol Modules:it can be compatible with card,fingerprint,barcode etc.customized according to customer needs.
Alloy steel tripod hub:its unique mechanical drvice design allow the arm to be pushed effortlessly and auto-rotate.Adjustable absorber controls rotation force to minize loud and avoid over rotation.
