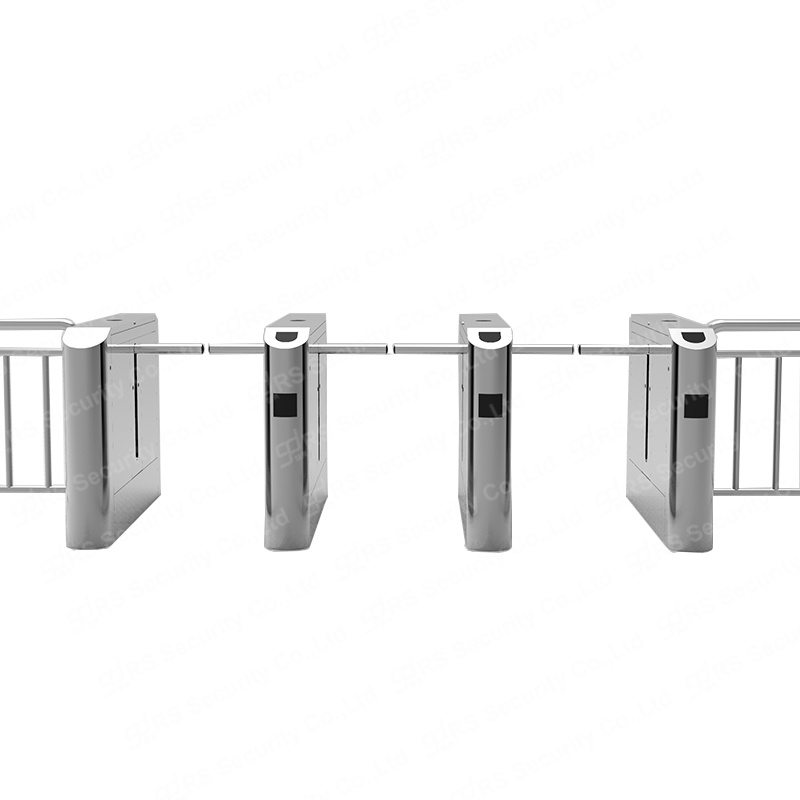

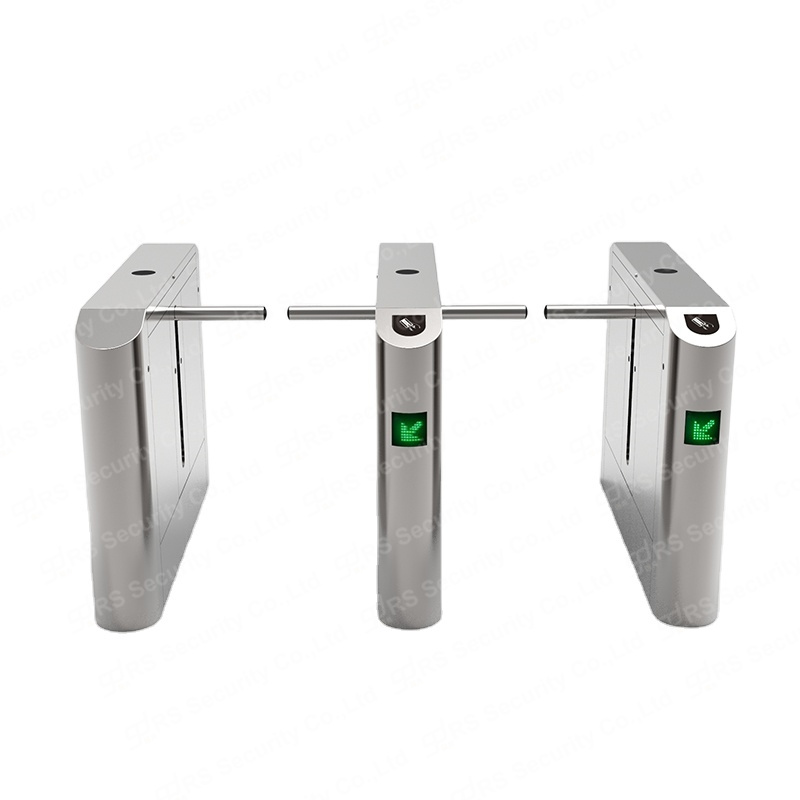

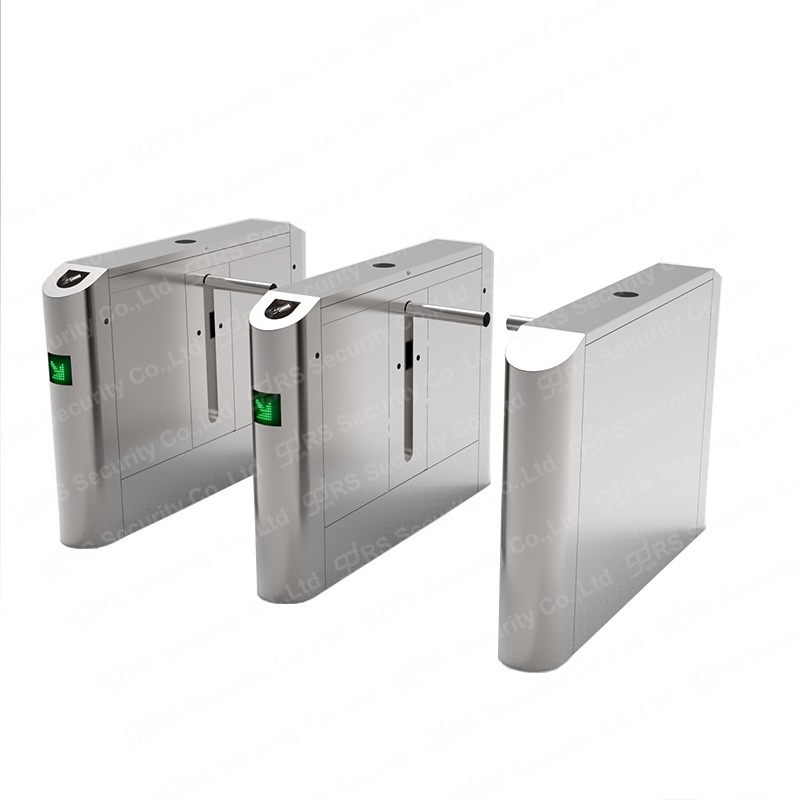

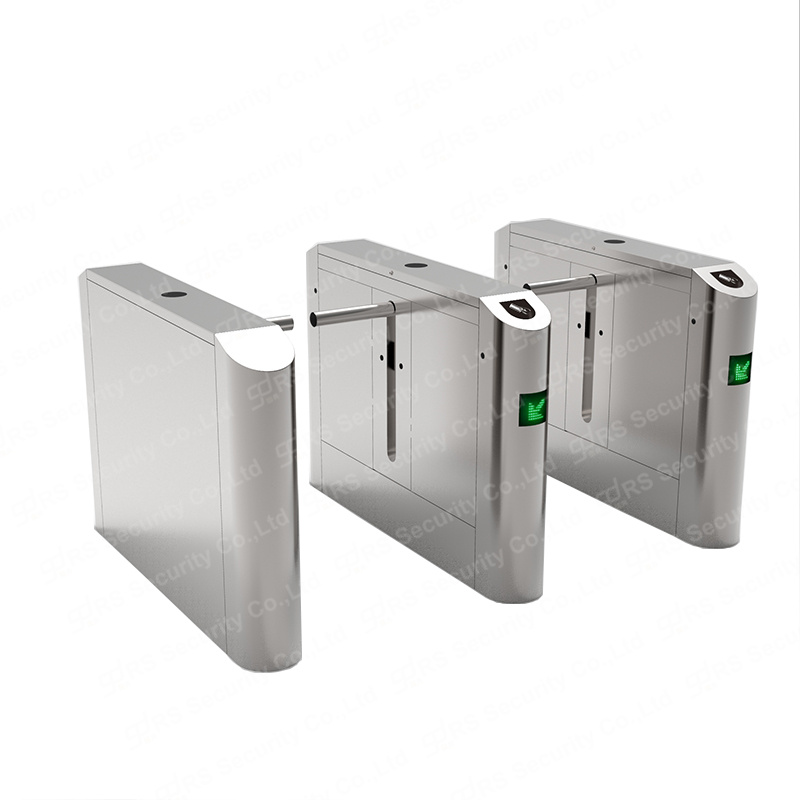

Drop Arm Barrier Turnstile RS 1009-B

Size 1400*165*980mm
Material 304 Stainless Steel
Brand RS Security
Origin Guangdong China
Certificate ISO,CE,SGS
Chat Now
Contact Us
304 Stainless Steel
RS Security
Guangdong China
I know

One Arm Turnstile RS 1009-B Also Called(Drop Arm Barrier,Drop Arm Gate,Drop Arm Turnstile,One Arm Turnstile). full body made of 1.5-2.0mm thinckness 304 stainless steel;Optical Barrier Gate RS 1009-B consist of RFID,led lamp,bars,electric circuit,mechanism,motor,sensors,moterboard and so on.Drop Arm Turnstile RS 1009-B is upgrading product of swing door,with smaller casing and mechanism.Drop Arm Gate RS 1009-B memory can be set,swipe cards several times for group pass,fast transit speed.Drop Arm Door RS 1009-B with standard fire interface,arm can drop down for evacuation even power is not cut off when fire alarm triggered.Optical Turnstile RS 1009-B is widely used in metro station,bus station,port,mansion,hotel,residential area and other place that requires a smart flow control.Optical Barrier RS 1009-B Provide orderly passage to people, anti-illegal entry or exit, low noise, smooth operation.Arm drops off in condition of emergencies.Drop Arm Barrier RS 1009-B requires smaller space.


Product Name

Drop Arm Barrier


RS 1009-B




304 Stainless Steel;2.0mm thickness;



Passage length

   Q 600 mm

Passing Direction

Single directional / Bi-directional

Service Life

5,000,000 cycles



HS Code


Power Supply

AC220V/110V, 50/60Hz

Operation Voltage

24V DC

Power Consumption


Operation Temperature

-15 ° C – 60 ° C

Flow Rate

25-35 people per minute

LED Indicator



Automatic arm drop when power off

Communication Interface

RS485 (Distance: <=1200m), TTL232

Access Control

barcode,ic/id card,face recognition,fingerprint etc;



1.Can be linked with a variety of control equipments, receiving the signal of relay switch .

2.Double protections of Mechanical and infrared anti-pinch function.providing more reliable and safer passing.

3.Multi alarm modes:illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.

4.Anti-rush function,Anti-Reverse,anti-intrusion, anti-follow.

5.LED indicator light :green and red indicate the passing information.

6.Normal open and normal close can be controlled by external button.

7.Auto detect and reset function.

8.Gate auto open when power is off to meet the fire protection requirements.

9.Drop arm turnstile Can be linked with a variety of control equipments, receiving the signal of relay switch.

10.Drop arm turnstile can be uni-directional or bi-directional control.

11.Flexible code dialing settings, having about dozens types performance for your selection.

12.Impact resistant, without receiving the open signal, turnstile arm locks automatically.

13.High adaptability for environment, and good ability for self-protection.Can work properly under all kinds of harsh environment, strong ego-protect ability, can adapt to the weak current short circuit, glare, fog rain and snow, the typhoon weather and climate charge


Stainless steel material:the shell is made of 304 stainless steel high temperature and corrosion resistance,durable dustproof and rainproof design for outdoor use.

Intelligent motherboard:the operation mode of the brake machine can be set up by the main board self drive borad adopts original mitsubishi heavy-duty design for 24 hours continuous application.

Contrlol Modules:it can be compatible with card,fingerprint,barcode etc.customized according to customer needs.

Alloy steel tripod hub:its unique mechanical drvice design allow the arm to be pushed effortlessly and auto-rotate.Adjustable absorber controls rotation force to minize loud and avoid over rotation.
